MaxScript Release 0.3 Beta for MAX 2.x and 3.x (9/22/2000)
Copyright (c) 1998-2000 by Borislav
Petrov, Bobo's Rendert**ls.
DIMaster creates CAD-style dimensions based on MAX Tape
HOW DOES IT WORK?
DIMaster searches the scene for Tape Objects and creates
showing the distance between the two Tape points.
The dimensions can also
be made visible in the
final renderings. Works only in the XY ground plane.
Beta 0.30 (9/22/2000)
Identical feature set, made compatible with MAX R3
Beta 0.20 (6/16/1998)

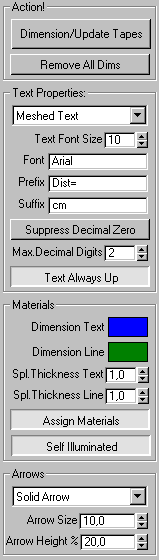

Press [Dimension/Update Tapes] to generate dimension
lines for each Tape in the scene.
Press the button again every time you change settings
- all dimensions will be updated.
Press the [Remove All Dims] to clear the scene
from dimension lines. NOTE
that DIMaster uses the Node Names to localize any Tapes/Dimensions. Changing
the prefix of a node from "Tape*" or "MXS_Dim*" to anything else will effectively
disable it from DIMaster actions.
Dimension Text can be Renderable Spline,
Mesh or Spline (None) - the first two will render, the third will be
visible in the viewports only.
Dimension Lines can be Renderable Splines
or normal Splines (when Text is set to None)
Support for Renderable Spline Thickness for Text
Support for Renderable Spline Thickness for Lines
Font size control
Font Type control - default is Arial, you
can enter any valid font name available on the system.
Prefix and Suffix (units) support - a
space is included between number and units text.
Suppress Decimal Zero - 128,0 will be displayed
as 128; 128,0451 will remain 128,0451
Decimal Digits number control (0-4) - 128,0451
can appear as 128 128,0 128,04 128,045 and 128,0451
Separate Color control for Text and Lines
- Wire and Material Diffuse color support.
Self-Illumination activation for material properties.
Material assignment can be turned on/off. (default=on)
Control for Text Up (default=on) - when off,
text can be upside-down when the Tape angle is between 180 and 270.
4 Arrow types - Circle, Spline Arrow, Solid
Arrow and Architectural Slash. None turns arrows off.
Arrow Size value controls the overall arrow size.
Arrow Height value defines the height of the
arrow as percentage from the overall size. Also used for the Circle and
Global Offset for the whole Dimension (default=10)
- moves both Text and Baseline away from the Tape, secondary lines change
length. Value is in MAX units.
Relative % offset for both Text (default= 80%)
and Base Line (default=70%) relative to the Global Offset.
User-defined Offset Over XY Plane (dafault=0)
- you can place the dimensions over solid rendered objects to be visible.
KNOWN BUGS AND LIMITATIONS
In this release, Dimensions will
be created only in the XY plane (or parallel to it). The distance will
be reported correctly as in 3D space.
The text alignment angle is used
to align the arrowheads - in some cases, the arrows might be drawn in the
outside of the Base Line.
The utility works globally with
all dimensions in the scene - you cannot select a single Tape and change
attributes locally. This feature might be added in the future.
Thanks to [._.] for the idea posted
in the 3DS Newsgroups.
Special thanks to John Wainwright
for the great scripting language.
Download DIMaster 0.30
