The Hide checkbox collapses the display. Alternativelly
you can click on the + sign to the right of the Manipulator.
The Name of the Manipulator is entered into
a multi-line text field. It can be of arbitrary length.

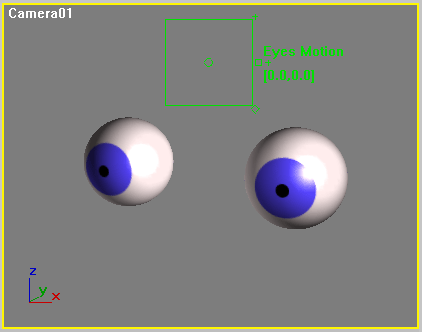

The Manipulator controls two values - X and
Y.
The Min. and Max Values of X and Y define
the ranges of X and Y values.
The Default X and Y values define the Auto-Center
position (by default [0.0,0.0]). Changing these values will let the Joystick
snap to the new position when Auto-Center is checked.
The X and Y Position values are in relative
Screen coordinates. The position can be also set by dragging the small
rectangle with the mouse.
The Size can also be set by dragging with
the mouse the small Diamond gizmo in the lower right corner of the Joystick
area.
The Auto-Center makes the Joystick return
to the Default position. When turned off, the joystick will remain at the
last set position (useful for setting animation keys). It can also be toggled
using the small +/box symbol in the top right corner of the Joystick area.
The Custom Colors can be turned on optionally
and will overrule the default Slider Colors display.
The Active Color is the one used for the slider
when MAX is in Manipulate Mode.
The Inactive Color is the one used when not
in Manipulate mode.
The Selected Color is used to highlight the
manipulated element.
You can copy the User Colors from another
Joystick, Spinner, Dial or SuperSlider Manipulator by clicking the "Acquire
Colors From" and picking a Manipulator in the Viewport.
|
