Magmapulators:

ModManipulators

MaxScript Release 0.4 Source for 3ds max 4 (01/29/2001)

Code by Borislav Petrov, Bobo's Rendert**ls.
Based on Radius Manipulator Sample Code by Scott Morrison, Discreet

SHORT DESCRIPTION

Magmapulators:ModManipulators is a set of scripted Manipulator plug-ins.
It is based on the sample code by Scott Morrison and
provides support for some Parametric Modifiers.

DESCRIPTION

Version 0.4 (01/29/2001)

Increased version number to fit the rest of the package. No functional changes.

Version 0.2 (11/01/2000)

Added support for Angle Wrapping in Angle Manipulators (code based on C++ code by Scott Morrison) - just take a Bend or Twist and start rotating in the same direction over and over again! FUN!!!

Version 0.11 (11/01/2000)

Added support for ToggleManipulators

Version 0.1 (10/31/2000)

-- Does Not Apply (No Such Property)

Supported by ModManipulators

Similar Property Exists but Not Supported Yet

Currently Supported Properties:

Modifier / Property Angle Direction Amount

Bend --

Twist -- --

Skew --

Extrude -- --

Face Extrude -- --

SOME EXAMPLES:

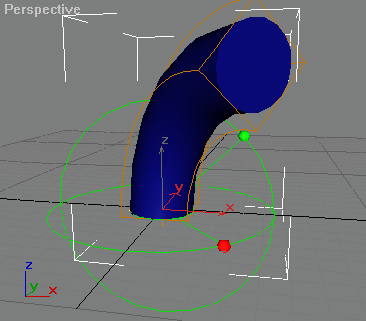

Bend Modifier:

Sphere on Horizontal Circular Path : Direction

Sphere on Vertical Circular Path : Angle

Twist Modifier:

Sphere on Horizontal Circular Path : Angle

Twist and Bend Modifiers on the same object:

NOTE that Twist Angle has larger radius than Bend Direction.

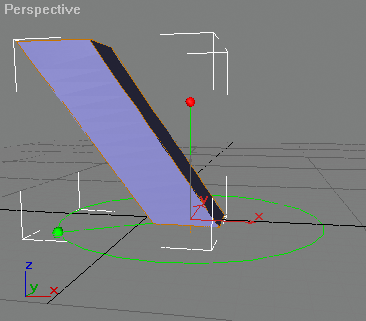

Skew Modifier:

Sphere on Horizontal Circular Path : Direction

Sphere on Vertical Stick: Amount

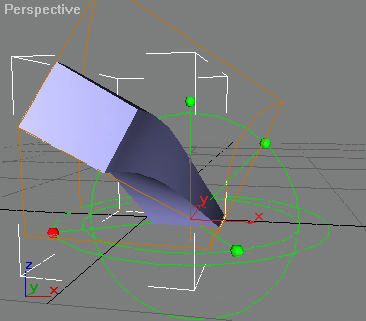

Skew and Bend Modifiers on the same object:

NOTE that Skew Direction has larger radius than Bend Direction.

Skew, Twist and Bend Modifiers on the same object:

NOTE that Skew Direction has the largest radius, Twist is in the middle, Bend Direction has the smallest radius.

KNOWN PROBLEMS AND LIMITATIONS

None yet.

DOWNLOAD Magmapulators

Please download the whole package from the Magmapulators: page.
