MCG Parse Quads

4 votes
Version:
2.07.00
Date Updated:
03/24/2016



This extremely simple MCG will parse though the quads (or tris) of your geometry. You can parse 1 face/quad at a time or grow from the start.

Another one for you mographers I think...(will work on a closed curve too, ie. text)

Ver 1.01.00: Added Reverse option. Reverse Grow however is not working. I'm trying to fix it.

Ver 1.02.00: Reverse Grow now works properly.

 (use this link if Youtube is blocked for some...http://1drv.ms/1f80ct0)

Ver 2.00.00: is an experimental version where you can pick another object (doesn't have to be flat) as an unwrapper/shapeshifter...whatever...experiment at your own peril !!! I'm still 'wrapping' my head around this to see how to take advantage of it....

Ver 2.01.00: also experimental to show cloning on Quad faces

Ver 2.02.00: added OffsetFirstTri flag. You MUST get the latest VuQuadMidpoint/Normal compounds too. Also added alignment.

Ver 2.03.00: added surface Offset, Rot Adjustments...and Clone Step...

Ver 2.05.00: added Emitter Step, fixed Surface Offset bug, all modes now working properly, added WTF settings...yes it's my MCG and that's what I'll call it....also fixed -Z normal bug.

Ver 2.06.00: Added Invert Selection on Emitter and also Invert Clone Step. See illustrations.

 Ver 2.07.00: fixed CanGetMeshFromNode bug

Any small donations to [email protected] would be greatly appreciated. I intend to then fully donate onto the following:

http://www.worldanimalprotection.org/

https://www.worldwildlife.org/

http://www.redcross.org.au/

http://www.savethechildren.org.au/

Thankyou. Meow. Woof. Moooo. Oink. Grrrl.....

3ds Max Version Requirement:
2016
Video URL:
AttachmentSize
vu_parse_quads_1.00.00.zip2.97 KB
vu_parse_quads_1.01.00.zip2.23 KB
vu_parse_quads_1.02.00.zip5.25 KB
vu_parse_quads_2.00.00_experimental.zip5.84 KB
vu_parse_quads_2.01.00_experimental.zip15.03 KB
vu_parse_quads_2.02.00_experimental.zip27.66 KB
vu_parse_quads_2.03.00.zip29.12 KB
vu_parse_quads_2.05.00.zip81.3 KB
vu_parse_quads_2.06.00.zip22.39 KB
vu_parse_quads_2.07.00.zip23.75 KB

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
vusta's picture

Evaluate compound first...

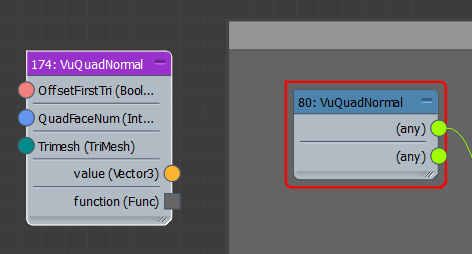

could you go into your ParseQuads graph and see if you get a red box like this ?
