Architecture to Standard Material Converter

4 votes
Version:
v1.0
Date Updated:
01/26/2018

This macroscript converts Architectural materials to Standard materials for use with VR exporters that require this setup.

To install:
- Run the script using MaxScript -> Run Script or drag the attached .MCR macroscript into Max
- Customize -> Customize user interface -> Toolbar
- From the "# SmallpolyScripts" category, add Architecture Standard Converter

One of my next steps is to add in the now-fixed functionality of my Autodesk_Bitmap to Bitmap converter script, found as a general use stand-alone script here.

Category: "# SmallpolyScripts" ButtonText: "ArchStd" ToolTip: "Architecture Standard Converter"

Additional Info:

----- Change Log -----
2018-02-02 - v1.00
- Now a macroscript. Minor UI Tweaks.

2018-01-26 - v0.9
- Used felixherder's input to fix the material instancing problem.
- Replacing alertbox based UI with actual rollout based UI
- Adding greater map support and filtering based on material type
- Fixed "acitecture" typo

2016-12-19 - v0.8
- Bugfix: Keeping the name should now work for multi-materials as well.

Version Requirement:
Max 2012-2018 Or Higher
AttachmentSize
archtostdmat_v1.00.mcr12.25 KB

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
felixherder's picture

Great Script One weird thing

Great Script
One weird thing though, if you have 5000 obj in your scene you get 5000 materials, although you started with about 20.
I've modified your script abit to keep mat instances, Just add this with a roullout checkbox maybe.

-- Go through materials
		for m in sceneMaterials do (
			 matMod = changeToStd m
			 objarr = for o in objects where o.material == m collect o
			 for obj in objarr do obj.mat = matMod
		)-- convert the material and assign it
Smallpoly's picture

Hey, that's weird. The script

Hey, that's weird. The script you're referring to should work correctly when run after this one. I'll have to verify if it still works in recent versions of Max.

Smallpoly's picture

Hey, that's weird. The script

Hey, that's weird. The script you're referring to should work correctly when run after this one. I'll have to verify if it still works in recent versions of Max.

1rv's picture

Thank you for sharing! It's

Thank you for sharing! It's almost perfect, but there's one minor issue: it doesn't convert Autodesk bitmap to vanilla bitmap. Could it be fixed?
I found there is your additional script to cure this issue but it does nothing.

enrico_sanchez's picture

Thank you very much!!!

This script is the best! I searched for hours looking for a way to convert Autodesk Materials to V-ray materials. It looked like the only way was spending €99 on Universal Material Converter, but instead I used your script and then v-ray scene converter!
Thanks again!

Smallpoly's picture

Looking into it

Thanks for letting me know about this issue!

If you know which material is causing the script to get stuck, do you think you could you assign it to a box, save that to a new Max file and upload it here as an attachment? If you're up for it, this would help me verify that any changes I make will fix the issue.

jointy's picture

error

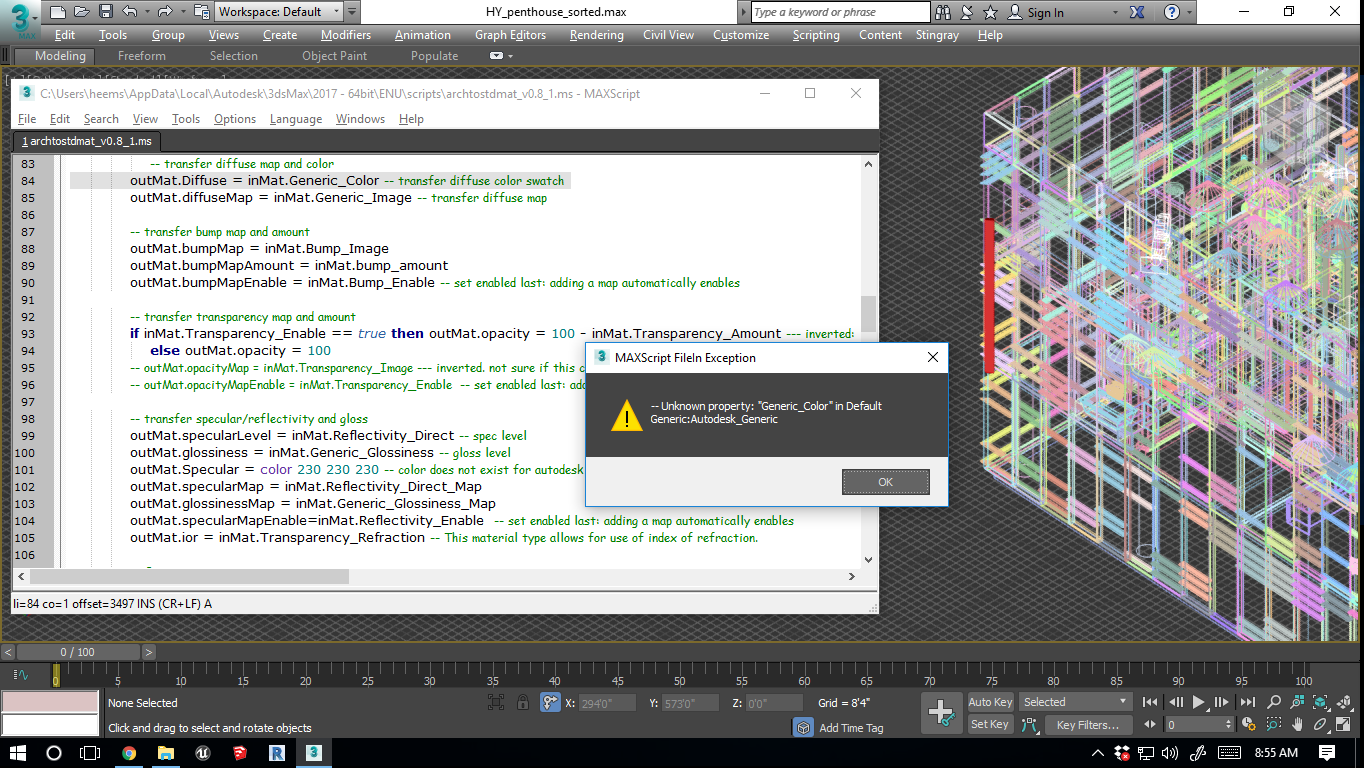

thank you your script. i am getting an error message "--unknown property: "generic color in default generic:Autodesk_generic"

i am using revit 2017 and 3ds max 2017 (64 bit)

see attached image.

AttachmentSize
material_converter_error.png 620.22 KB
Smallpoly's picture

Update v0.8

Bugfix: Original names should stick around on all materials now.
