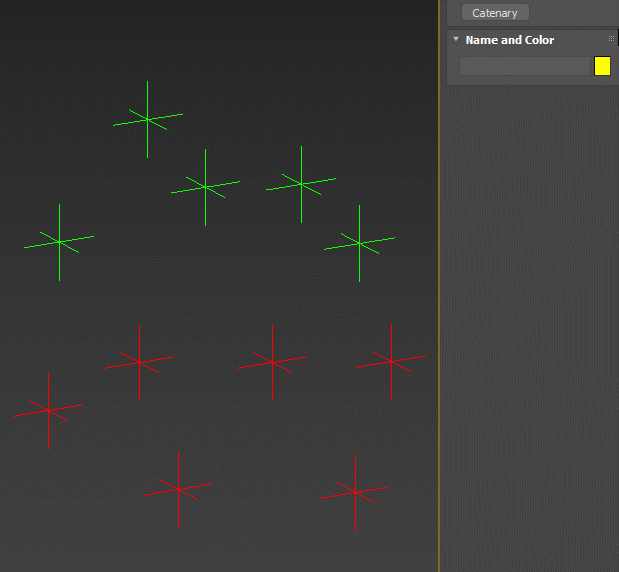

Simple multi-point spline approximating the shape of the catenary curve (the shape formed by a hanging rope). Allows for driving the point positions by scene objects, controlling the slack by absolute sag amount or relative to the length of the line between points, randomization of the slack and other options:
Script
Simple Catenary
By Swordslayer · Credited author: Vojtech Cada · 2015-12-03
- Version
- 0.02a
- Version requirement
- 3ds Max 2016 SP2.1
- Votes
- 13
Description
Additional Info
Installation: Copy the .ms file to your scripts\startup folder or run as a script if you want to try it out first. The object primitive will be available under Shapes -> Examples dropdown menu in the Create panel (see picture above).
