Align vertex to plane

Submitted by titane357 on Wed, 2011-04-06 09:38

Hello

I'm looking for a tool to align a vertex to a plane defined by 3 vertexes.
The workflow would be :
- run script
- clic 3 vertexes
- clic 1 vertex to be aligned
- done
The alignement is done perpendiculary to the defined plane.

Hope somebody could do it.
Thanks. :-)

Scripts Wanted

Comments

Submitted by titane357 on Fri, 2011-04-08 11:12.

hello Garp, if you want to

hello Garp, if you want to test your math knowledge I can give you a challenge... :-)
Max lake of a tool to control how planar are polys.
I would like to see a tool to show with colors how planar are faces :
red over 10% (for eg) non planar to green completly planar (0%)
Percentage could be calculated for example as a relation between edge length and the "deviance" of each vertex from the average plane defined by the poly's vertexes.
If it make sense, I'm sure you could'nt resist...

Thanks.

Submitted by Garp on Fri, 2011-04-08 00:27.

You're welcome :)

I had to figure the maths for another script I needed a few month ago. So now, it's easy (...ahem)

Submitted by titane357 on Thu, 2011-04-07 03:23.

WOw ! Thanks a lot. Works

WOw ! Thanks a lot. Works like a charme.
seems easy for you but too much maths for me.... :-) Thanks
Hope max2012 will have better snap !

Submitted by Garp on Thu, 2011-04-07 00:51.

This should do it:

(
  local p1 = pickPoint snap:#3D
  local p2 = pickPoint snap:#3D rubberBand:p1
  local p3 = pickPoint snap:#3D rubberBand:p2

  local theTM = matrixFromNormal (normalize (cross (p3-p2) (p2-p1)))
  theTM.translation = (p1+p2+p3)/3
  local obj = selection[1]
  in coordSys theTM for v in polyOp.getVertSelection obj do
    polyOp.setVert obj v ((polyOp.getVert obj v) * [1,1,0])
)

Works on editable polys.
Select the vert(s) to align, turn vertex snap on (if you want to use verts), run the script and pick your three points. Done :)
Note that there's no error checking, so if the points are aligned...

Submitted by kiski on Thu, 2018-08-16 09:03.

Hi Garp, would it be possible

Hi Garp, would it be possible to modify the script code so I can choose a face directly instead of those 3 vertices (that define the triangle plane) ? I would be very glad and thankful.

Submitted by kevinlp on Sun, 2017-11-05 21:16.

code error

Hello Friend ...
I was trying to use your script code, but at the time of opening it I get an error of syntax, in the part of # 3D, that section is recognizing 3ds max, I'm new to this but I think the operation of the script is poorly written, or am I wrong.
please help me with tha

Submitted by miauu on Mon, 2017-11-06 03:58.

.

I don't get any error with thes script.
Select Editable Poly object, select som vertices and run the code. Pick 3 points and the selected verts will be moved.

Tools and Scripts for Autodesk 3dsMax

Submitted by kevinlp on Mon, 2017-11-06 15:08.

Hi friend I admire your work

Hi friend I admire your work and experience, I've seen some of your work, I think it's great.
the truth is that I do not know how to execute the code, as far as I understand, I have to store it in an extension (.ms) or (, mrc). to then import it into my workspace in 3ds max. I think the procedure is wrong, could you do me the favor of explaining how to execute the script code.

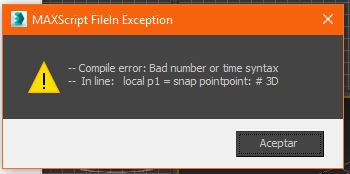

At the end I see this error, and when I try to look for it in customize I can not find it.

Attachment	Size
captura1.jpg	17.9 KB

Submitted by miauu on Tue, 2017-11-07 04:18.

.

Hi!

This is the code as macroscript:

macroscript alignVertexToPlane
category:"miauu"
tooltip:"Align vertex to plane"
buttonText:"Align vertex to plane"
(
  local p1 = pickPoint snap:#3D
  local p2 = pickPoint snap:#3D rubberBand:p1
  local p3 = pickPoint snap:#3D rubberBand:p2

  local theTM = matrixFromNormal (normalize (cross (p3-p2) (p2-p1)))
  theTM.translation = (p1+p2+p3)/3
  local obj = selection[1]
  in coordSys theTM for v in polyOp.getVertSelection obj do
    polyOp.setVert obj v ((polyOp.getVert obj v) * [1,1,0])
)

Sve it as mcr file and drag and drop it in 3ds Max viewports. Then you can find it under "miauu" category(change it if you want).

The error shown in the image is from bad copy-paste. As you can see from the code there is no line that starts with:

local p1 = snap pointpoint: #3D

Tools and Scripts for Autodesk 3dsMax

Submitted by kevinlp on Tue, 2017-11-07 05:33.

.

Hello
Thanks for your collaboration, for accepting to help me, this macroscript has helped me a lot to advance in my 3ds max designs.
I hope he continues to share his experience.
If you ever ask me how I have made so much progress, I will answer that a boy or girl who calls himself miauu has helped me.
thank you very much.

Your YouTube channel is great.
