MCG 32BitPatternMaker

10 votes
Version:
1.03
Date Updated:
12/02/2015

This MCG allows you to make tileable geometries. Works on just about anything that has a Tesselate on it.

(The 32Bit refers to 32 Tris you can use to form a pattern. It does not impose restrictions on your software version or op system, you need at least Max 2016 that is...)

Updated Ver 1.01: compacted boxes, added Tile Mode

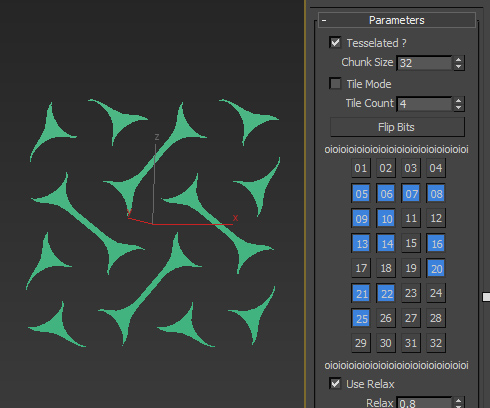

Ver 1.02: checkboxes are now buttons, also added a few more patterns...check out latest video.

Ver 1.03:

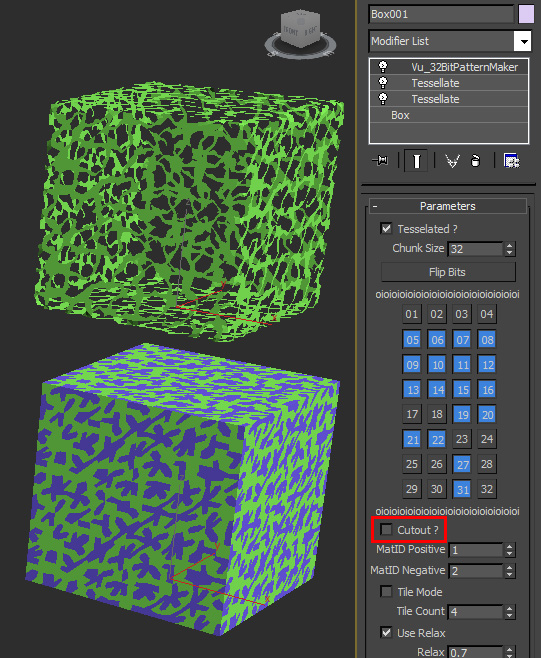

- No Cutout mode so your mesh remains as one but with different MatIDs

- Allows Relax to go negative

- More patterns, samples

3ds Max Version Requirement:
2016
Other Requrements:
no need for EXT1 or 2 !!!

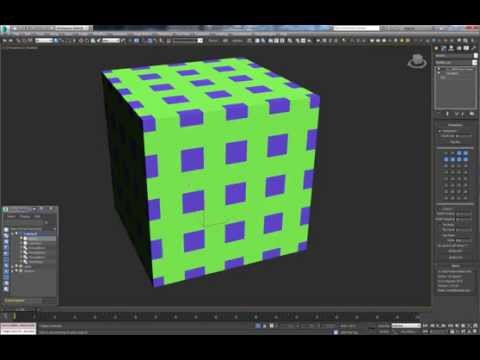

Video URL:
AttachmentSize

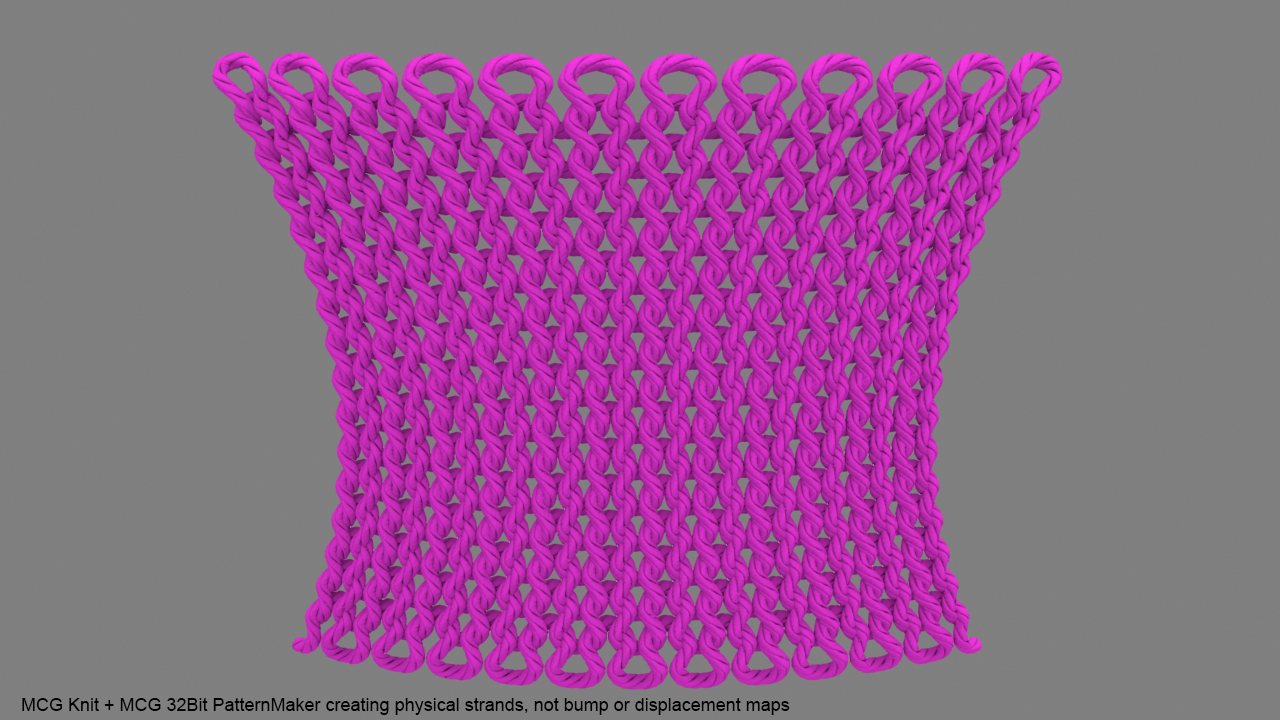

corset.jpg674.87 KB

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
vusta's picture

don't think it's poss..

with the 32Bit_PatternMaker that is....because it works on a repeating 'grid'...while the nest pattern is more random/chaotic.

But I think it should be doable as a separate MCG..I'll have a think.

compuhms's picture

BIG LIKE !!

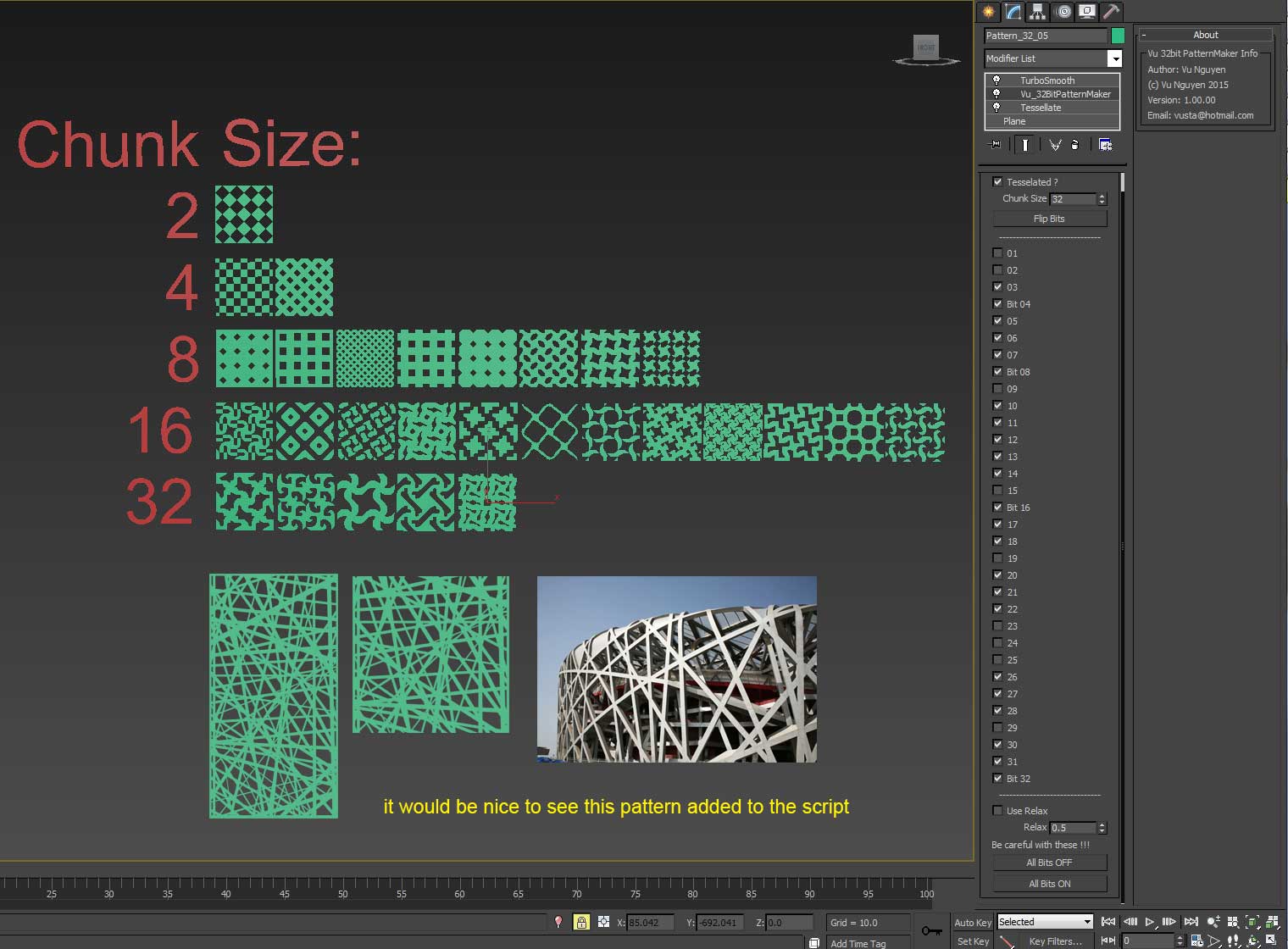

i'm so interested in this tool and i wonder if you can add the nest pattern or make it the same way as a standalone script like "vu_cross"
http://www.hm-studios.com/downloads/nestpattern.jpg

arch. Hazem Mamdouh
www.hm-studios.com

vusta's picture

huh ???

must be something in the weed that i smoked...

brainsgonedead's picture

Why so harsh?

The question above says it all...

victorgilbert's picture

great tool...you guys really

great tool...you guys really used the skills for the advancement of the technology..i really appreciate your work...well done..in fact incredible.. wow!

vusta's picture

no it's not...Alaa

well if you know mcg that is...:) seriously it is quite simple...compare to previous graphs...this one could fit on one screen...

Alaa alnahlawi's picture

Wow thats so advanced Vu,

Wow thats so advanced Vu, well done as always.
