Advanced Planar

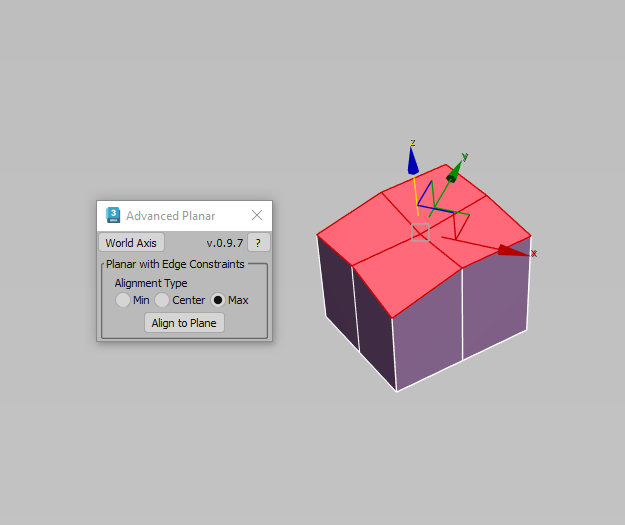

Description: This script makes sub-objects coplanar using Min, Center, and Max extremes, similar to what the standard Planar does, but much more flexible. The "Align To Axis" routine lets you align sub-objects by a specified world axis.

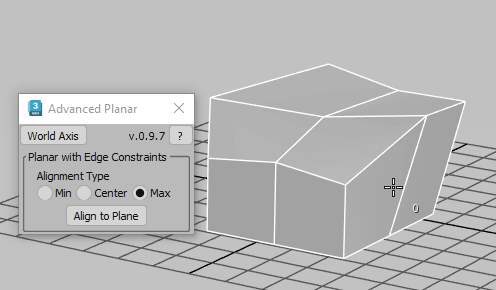

Usage Planar with Edge Constraints:

      1. Select an alignment type (Min, Center, Max).

      2. Click the "Align To Plane" button.

      3. Be aware that vertex and polygon modes work differently.

Usage Align To Axis:

      1. Select Axis X, Y, or Z.

      2. Select an alignment type (Min, Center, Max).

      3. Click the "Align To Axis" button.

      4. Its using global axes directions for the alignment. Min - negative XYZ, Max - positive XYZ.

 Requirements: Tested on 3ds Max 2025.3

Installation: Drag and drop the MZP file onto a viewport or use "Scripting -> Run Script".

License type: Proprietary - Single User License

  Disclaimer:    This script is provided "as is" without warranty of any kind. Use at your own risk. The author assumes no liability for any damages or losses that may result from using this script. Unauthorized distribution or modification is strictly prohibited. Full license terms are provided in the LICENSE.txt. which can be found in the attachment below.
