Slope Analysis

0 votes
Version:
1.1
Date Updated:
12/27/2016

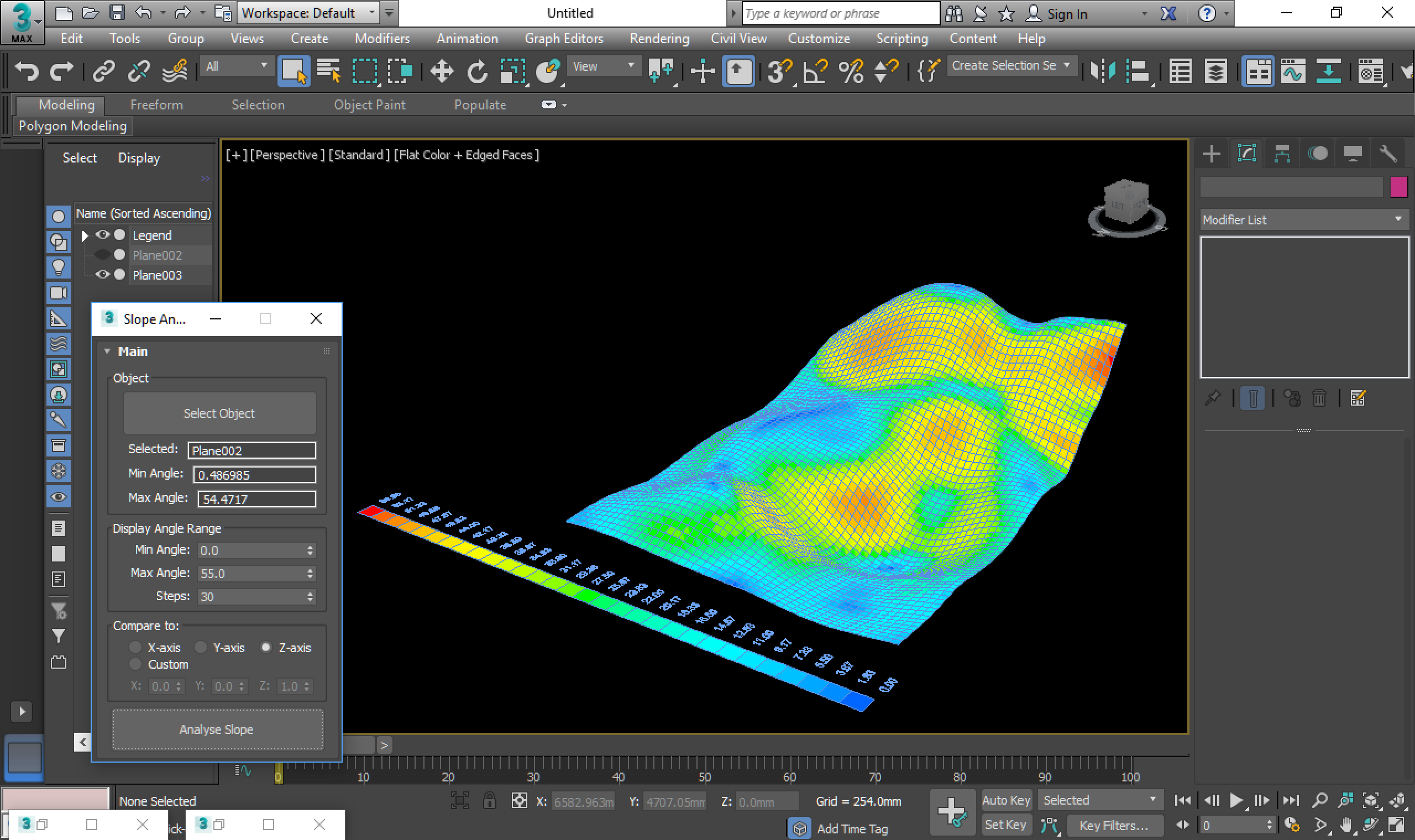

This script will analyse the slope of different regions of an object such as a terrain by computing the angle between the face normal and a specified vector direction (default: z-axis). You can adjust the displayed colour ranges by changing the range min and max values as well as the steps between the colours. The script uses a multilateral to assign different material IDs to each face based on its angle calculation.
