Game Rigg to Character Studio Biped

14 votes
Version:
0.10
Date Updated:
06/10/2011
Author Name:
Fernando Ferro

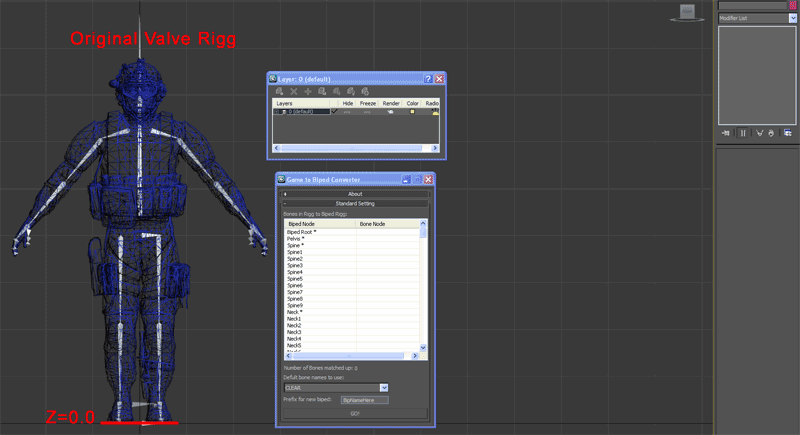

gametobiped1



Creates a Character Studio Biped rigg based on a Valve rigg made with standard bones.
Biped limbs are scaled to the size of each bone. Position and orientation are copied from each bone too.
Biped COM are created at the Pelvis bone position but not scaled or oriented.
Biped Pelvis are scaled to replicate the Thighs position, but oriented as default bipeds.
Original bone rigg must stand on Z = 0.0
all meshes with a skin modifier are copied from originals but cotroled by the new biped.
the list of bones to find comes from \\Scripts\\GameToBiped\\Presets\\ValveBiped01.btf

Additional Info:

Downloaded file must be extracted at 3DS MAX Script directory, in my case:
"D:\Program Files\Autodesk\3ds Max 2010\Scripts"

It does not work with twisted bones. ONLY: 1 Upperarm + 1 Forearm

Version Requirement:
3D Studio MAX 2010 32 or 64 bits
AttachmentSize
gametobiped.rar548.38 KB
gametobiped1.gif258.28 KB

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
fferro's picture

sorry guys, the

sorry guys, the implementation of this script is not flexible enough to adapt to new riggs.
I have to create a database for each one and for that I should be familiar with it.
I' good with Character Studio only.

remark3d's picture

Hello Fernando

I have same request, if is possible to make DAZ Studio 4 - fbx export character bones preset, would be great beacause your script have a great potential :) (and what about "save" preset directly over your script?)

Martin

lightcube's picture

Thanks for responding. (I'll

Thanks for responding. (I'll link to it anyway :P )

You could potentially set it up with some default CAT Rig that has specific names... perhaps one of the default human rigs that comes with CAT. The default CAT rig Bip01 has all the same names of a default biped (I believe).

The main reason for me is that this is essentially solving the same dilemma that I'm asked about a lot... and I'm more interested in using CAT overall than biped. (And I'm also more interested in not spending the time to do it :) )

_______________________

Shawn Olson

Developer of Wall Worm

fferro's picture

Hi hakim_the1, Do you know

Hi hakim_the1,

Do you know Motionbuilder has a template to characterize riggs from Daz 4 Genesis?
May be this is the better workflow for your problem
Best R

fferro's picture

Hi Shawn Olson, CAT does not

Hi Shawn Olson,

CAT does not have a unique named hierarchy, like Biped. So, there are a lot of work to do. Not enough free time, sorry.

lightcube's picture

CAT

Add support for CAT and I will add a link to this into Wall Worm.

_______________________

Shawn Olson

Developer of Wall Worm

fferro's picture

where do you extract the

where do you extract the file?
Which version of MAX?

fferro's picture

Bugs...

Downloaded file must be extracted at 3DS MAX Script directory, in my case:
"D:\Program Files\Autodesk\3ds Max 2010\Scripts"

It does not work with twisted bones. ONLY: 1 Upperarm + 1 Forearm

delvar34's picture

help please

hi, i try to run the script but when i do it a message appear:

Runtime error: dotNet runtime exception: Ivalid directory on URL

so, what must i do ?

best regard.

hakim_the1's picture

Need Your Help

Hi Fernando..

I need help from you.. i tried your script but unnecessary things are coming in middle and not getting the result.

I am using Daz 4 characters into 3d max 2009 and 2010.. specially Daz genesis bones structure.

If you forward me your email than i will send you my genesis FBX character with rigging ... i just need when i import into max software and than i use your MODIFIED script, which automatically match with my Genesis character and that dummy bones converted into Biped. please just help me in this thing. i tried so many things. but something comes in middle. you can Contact me on my email - [email protected]

I am waiting for your help.

Bybye.. Take care...
