Copy Paste DWG

47 votes
Version:
v1.30.00
Date Updated:
12/22/2021
Author Name:
Pixamoon

.
 New - posibility to change imported Layer name for "All to one layer"
.


.

This is another simple script to speed up some everyday modeling work....

Just to simply Copy Paste selected from AutoCAD or DraftSight to 3ds MAX

It copy only selected, so its easy to split dwg to separate objects (elev from plans etc)

____________________________________________________________________________________________

How to do it:
 - select drawing in Autocad or DraftSight  (best if you clean it first of course :)
 - press Ctrl-C   (as always copy drawings in Autocad or DraftSight)
 - go to 3ds Max
 - run script  (drag and drop or choose from scripts menu)
 - done

How it works ?
It just reads AutoCAD or DraftSight clipboard and import it to MAX

To switch between AutoCAD and DraftSight press AutoCAD button

____________________________________________________________________________________________

Full version v1.30


  - New - "S" button - Import Settings anytime
  - New - Create Selection Set
  -
"A" button - Automatic Paste - on/off - all what is copied Ctrl+C in Cad will be paste automatically
     (no need to jump beetween Max and Cad)
  - move Pivot to front (buttom of flat elevation)
  - automatically switch between AutoCAD and DraftSight
  - new method to find latest DWG clipboard
  - new "u" check button - make group name unique + right click "u" -> make uniqe group names on paste
  - classic import options (scale etc)
  - remove materials from imported
  - remove ColorByLayers
  - white wirecolor to black
  - unlink blocks - unlink parent / children relationship
  - move all pasted objects to one layer
  - delete pasted empty layers
  - make all splines flat to Z = 0
  - move all to center X,Y = 0,0

  - group imported objects
  - zoom to pasted
  - select pasted objects

  - installation package with toolbar icon and shortcut
  - save default paste settings
  - save dialog position

  - press Enter for quick accept
  - press Esc to quit

  - on / off - close dialog on paste

Coming next :
  - 2 versions with and without dialog
  - wirecolor button - insted of color picker
  - copy paste from newer AutoCAD than 3ds Max

Full version available here:
http://www.pixamoon.com/shop/4587562584/copy-paste-dwg/9910941
or:
https://gumroad.com/l/copy-paste-dwg

____________________________________________________________________________________________

Lite version:
  - switch between AutoCAD and DraftSight
  - classic import options (scale etc)
  - remove materials from imported
  - remove ColorByLayers
  - white wirecolor to black
  - unlink blocks - unlink parent / children relationship
  - move all pasted objects to one layer
  - delete pasted empty layers
____________________________________________________________________________________________

To install Lite version:
use my other script - > Favorite Scripts:
  1. Install Favorite Scripts (drag and drop to max)
  2. place on toolbar (customize -> category Pixamoon)
  3. run Favorite Scripts
  4. settings
  5. choose your favorite scripts root folder
  6. create "IO" or "Edit folder"
  7. copy "CopyPasteDWG" script there

New version of Favorite Script available here:
http://www.scriptspot.com/3ds-max/scripts/favorite-scripts

____________________________________________________________________________________________

The best is to copy from same or older AutoCad version to newer 3ds Max - (max doesn't open newer dwg file formats)

But if you have installed only newer AutoCAD and you get this error.



Please follow this tutorial: http://www.pixamoon.com/blog
You can find there Auto Cad scripts: "Save to older" version and tutorial how to install them.

____________________________________________________________________________________________

Full changelog:
v1.30
 - added ComboBox to set Layer name for "All to one layer"
    - to add a name to the list - Press "+" button or hold Shift and press Enter
    - to delete from the list - hover over item and press Delete

 - removed '-' button - delete item from group list - works same way as Layers list now

 - added 2nd method to find AutoCad clipboard (for users who has windows temp in different location)
    - right-click on topbar and choose "Find DWG - method 2"

- added possibility to deactivate and move license to new workstation
     - right-click on topbar and choose "Deactivate"
- added possibility to automatically activate license on first start without user interaction
    - solution for offices with multiple licenses - specially when script started from network location
    - it require additional 'activation-data.ini' file to be placed in same folder as .mse script file
       [activation]
       email= purchase email
       hide_email=1
       auto_start=1
    - to request 'activation-data.ini' file or for more info - ask me by email

v1.29.01
  - fixed error on start - when Auto Paste enabled
v1.29
 - fixed paste from Draft Sight - issue with older clipboards
 - fixed Auto Paste
v1.28
  - Add & Del (+, -) buttons to customize default group names
  - Move pasted drawing to X,Y = 0,0
v1.27
  -  Dropdown list with default group names
v1.26
  - "S" button - Import Settings anytime
  - Create Selection Set
v1.25

- "A" button - Automatic Paste
  - Auto Paste on start - when cheked than saves "A" button to next start
  - new icon - works with light and dark scheme
v1.24
  - fixed bug - rermove only imported empty layers
v1.23
  - move Pivot to front (buttom of flat elevation)
  - fixed bug - make splines flat to Z=0
v1.22
  - fixed bug with "Close after save"
  - new - Make always uniqe group names - right click "U" check button
  - fixed activation window
v1.20
  - automatically switch between AutoCAD and DraftSight
  - fixed bug - old clipboard DWG imported
  - new "u" button - make group name unique
  - fixed bug - error when after typing group name pressed Paste button
  - press Enter for quick accept
v1.11
  - new checkbox: Close window after paste (on/off)
  - fixed: nothing pasted when - import as "one object"
v1.10
  - fixed to work in 3dsMax started as non-Admin
  - faster paste method

____________________________________________________________________________________________

Lite changelog:
v1.11
  - fixed: nothing pasted when - import as "one object"
v1.10
  - save dialog position
v0.28
  - fixed to work in 3dsMax started as non-Admin
  - faster paste method
v0.27
  - move all pasted objects to one layer
  - delete pasted empty layers
v0.26
  - unlink blocks - unlink parent / children relationship
  - all clean options are turn on as default
v0.25:
  - switch between AutoCAD and DraftSight
  - classic import options (scale etc)
  - remove materials from imported
  - wirecolor from ColorByLayers
  - white wirecolor to black

____________________________________________________________________________________________

Full version available here:
http://www.pixamoon.com/product-page/copy-paste-dwg

Lite free version available here:
http://www.turbosquid.com/FullPreview/Index.cfm/ID/927563?referral=pixamoon
____________________________________________________________________________________________

Thanks for bug report by mynewcat
Script is tested now in 2009, 2014, 2015 and all works good :)
I think you may have newer version of AutoCAD than 3dsMax

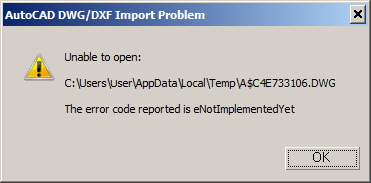

If you got this error: "Unable to open:.... The error code reported is eNotImplementedYet" ??
 - it means AutoCAD version is newer then 3ds Max
____________________________________________________________________________________________

Note:
AutoCAD version has to be older or the same as 3ds MAX version, but please try Lite version and let me know
____________________________________________________________________________________________

Big thanks for testing, great suggestions and promo image to Mustafa Mamdouh !
____________________________________________________________________________________________

Enjoy !
Pixamoon

CGTrick about Copy Paste DWG:

Video URL:

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
pixamoon's picture

re: Bricscad migration

Hi,

Do you use Copy Paste Free or Copy Paste DWG full version ?

Full version has an option to choose clipboard methods - please try to right-click on Taskbar and choose method 2. Let me know if that works with Bricscad

Best,
Pixamoon

wezzard's picture

Bricscad migration

I just made the move to Bricscad and was able to set it up pretty much the same as Autocad put have some minor ajustement to deal with..CopyPaste is a very nice script and was very useful for me. I was wondering if it's a major change to be able to switch the app that we use to copy the dwg from?

scripture's picture

The most useful script ever!

Absolutely reliable and fast! I love it and think it is the best tool to bring 2d dwg from AutoCAD to 3d MAx!

todor's picture

Very nice script !

Very nice script !

Nereu's picture

The Best

The Best Plugin for Archviz. Many functions.
Thank You.

crawlewis's picture

Very good script

Amazing script!

pixamoon's picture

Yes, it works with DraftSight

Hi,

Yes, it works with DraftSight already.

Full version detect last dwg clipboard automatically.
Lite version has a button on top to switch between AutoCad and DraftSight

Best,

anasmeeth's picture

Could this be made to work

Could this be made to work with Draftsight as well as AutoCad?

India Tour

stevekung's picture

Very useful script

This script really make my work more convenient, and the update is very fast :D

titane357's picture

Thanks for support ! Text is

Thanks for support !
Text is very important when importing from archi docs : altimetry for example.
But it would be great to have just basic text, as light as possible, just for info.
cheers
