MCG Blower

0 votes
Version:
1.01
Date Updated:
01/26/2018

Orig thread here:

http://forums.cgsociety.org/showthread.php?f=6&t=1476428

Installation: (Max 2016 must have Extension 1/2 + SP3)

https://knowledge.autodesk.com/support/3ds-max/learn-explore/caas/CloudH...

Then can be found in Create>Shapes>Vu

Donations: paypal.me/vusta

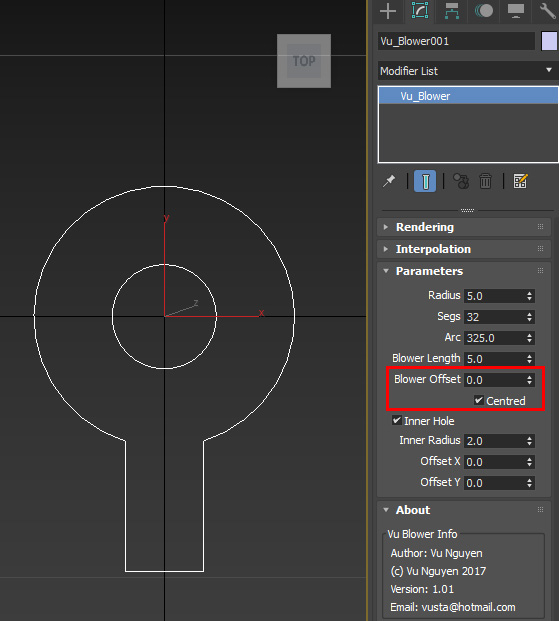

ver 1.01: added Blower Offset (effectively, Arc affects Blower Width)

Donations: paypal.me/vusta

3ds Max Version Requirement:
2016
Other Requrements:
2017

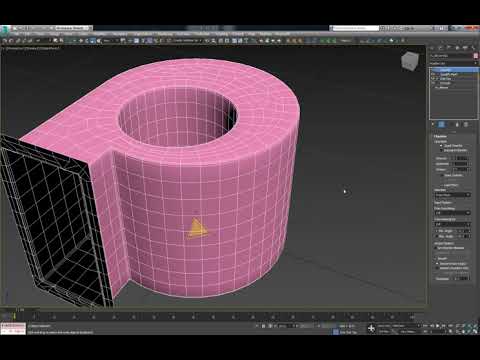

Video URL:
AttachmentSize
vu_blower_1.00.zip9.84 KB
vu_blower_1.01.zip11.22 KB

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
Chris889's picture

Hmm

Man, that must be complicated. I imagine having my first project using the blower.
Jon | https://www.wildthingzllc.com

djcluv's picture

thanks

wow great gram...great software..archery hunting games

vusta's picture

let me chew on that...

I don't see any immediate major problems but I'd probably do a separate MCG tho

peter_fischer's picture

blower/drop-off

this blower would also be a great tool to quickly represent a vehicle drop-off roundabout. is it possible to shift the stem relative to the circle? add fillet radii to the intersections? images attached. cheers!

AttachmentSize
capture.png 21.31 KB
bspr_landscape_concept_report-5.jpg 186.08 KB
