Trying to find a bounding sphere.. doing something wrong, but can't figure out what
Okay, I've been competely unable to find a Maxscript for finding an object's minumim enclosing sphere (bounding sphere), so I'm trying to write my own.
The basic concept is:
1) Start with the first few points of an object
2) Make spheres based on their positions (i.e. either from between 2 points, or at the circumcenter of a triangle formed by 3 points).
3) Keep the smallest sphere that still includes all of the checked points, delete the rest.
4) Ignore points that do not reach as far out as that smallest sphere (i.e. ones well within the boundaries), then add the next point to be checked
5) Repeat from step 2
Unfortunately, I seem to be having a hard time putting this into practice. My attempts so far have brought me up to the following. I have some code in there to output debugging data to the listener, and don't understand why the code is allowing certain things to happen.
global RO_KnuckleBall
try(destroyDialog RO_KnuckleBall)catch()
global s
-- special thanks to Joel Hewitt (a.k.a. Gravey)
fn circumcenter p1 p2 p3 =
(
BC = distance p2 p3
CA = distance p3 p1
AB = distance p1 p2
baryCoords = [ (BC^2 * (CA^2 + AB^2 - BC^2)), (CA^2 * (AB^2 + BC^2 - CA^2)), (AB^2 * (BC^2 + CA^2 - AB^2)) ]
triArea = baryCoords.x + baryCoords.y + baryCoords.z
baryCoords /= triArea -- normalize the barycentric coordinates
baryCoords.x * p1 + baryCoords.y * p2 + baryCoords.z * p3
)
-- get measurements and create spheres
fn defineSpheres p =
(
-- midpoints of lines
midAB = (p[1] + p[2]) / 2
try(midAC = (p[1] + p[3]) / 2) catch()
try(midAD = (p[1] + p[4]) / 2) catch()
try(midBC = (p[2] + p[4]) / 2) catch()
try(midBD = (p[2] + p[4]) / 2) catch()
try(midCD = (p[3] + p[4]) / 2) catch()
-- midpoints of triangles
try(centerABC = circumcenter p[1] p[2] p[3]) catch()
try(centerABD = circumcenter p[1] p[2] p[4]) catch()
try(centerACD = circumcenter p[1] p[3] p[4]) catch()
try(centerBCD = circumcenter p[2] p[3] p[4]) catch()
-- spheres defined by 2 points
try(s2_AB = geoSphere pos:midAB radius:(distance p[1] midAB)) catch()
try(s2_AC = geoSphere pos:midAC radius:(distance p[1] midAC)) catch()
try(s2_AD = geoSphere pos:midAD radius:(distance p[1] midAD)) catch()
try(s2_BC = geoSphere pos:midBC radius:(distance p[2] midBC)) catch()
try(s2_BD = geoSphere pos:midBD radius:(distance p[2] midBD)) catch()
try(s2_CD = geoSphere pos:midCD radius:(distance p[3] midCD)) catch()
-- spheres defined by 3 points
try(s3_ABC = geoSphere pos:centerABC radius:(distance p[1] centerABC)) catch()
try(s3_ABD = geoSphere pos:centerABD radius:(distance p[1] centerABD)) catch()
try(s3_ACD = geoSphere pos:centerACD radius:(distance p[1] centerACD)) catch()
try(s3_BCD = geoSphere pos:centerBCD radius:(distance p[1] centerBCD)) catch()
)
-- get position and radius of spheres
fn getSphereData =
(
s = #(#(), #())
for o in objects where classOf o == geoSphere and o != undefined do
(
append s[1] o.pos
append s[2] o.radius
)
)
fn knuckleBall_Start tgt =
(
-- define initial points
p = #()
for i = 1 to 4 do p[i] = polyOp.getVert tgt i
defineSpheres p
getSphereData()
-- delete spheres with points that fall outside
for a = 1 to s[1].count do
(
format "looking at sphere #%...\n" a
for b = 1 to p.count do
(
if distance s[1][a] p[b] - s[2][a] > .0001 do
(
format " point #% (%) falls outside sphere #%\n" b p[b] a
isDeleted = false
for o = 1 to objects.count where classOf objects[o] == geoSphere while isDeleted == false do
(
if objects[o].pos == s[1][a] and objects[o].radius == s[2][a] do
(
format " deleting object % (matches sphere #%)\n\n" objects[o] a
delete objects[o]
isDeleted = true
)
) -- end o loop
) -- end if (distance)
) -- end b loop
) -- end a loop
-- delete all but the smallest bounding sphere
getSphereData()
for o = 1 to objects.count where classOf objects[o] == geoSphere do
(
if objects[o].radius != aMin s[2] do delete objects[o]
)
getSphereData()
-- remove redundant points from the array
for a = 1 to s[1].count do
(
for b = 1 to p.count do
(
try
(
if distance s[1][a] p[b] < s[2][a] do deleteItem p b
)
catch(format "NOTE: array item % was NOT deleted\n" b[p])
)
)
)
-- continue creating and checking spheres using the remainder of the object's points.
fn knuckleBall_Cont theTarget i =
(
tempPoint = point size:0.1 pos:(polyOp.getVert theTarget i)
append p (polyOp.getVert theTarget i)
defineSpheres p
getSphereData()
-- delete spheres with points that fall outside
for a = 1 to s[1].count do -- for all spheres
(
format "looking at sphere #%...\n" a
for b = 1 to p.count do
(
if distance s[1][a] p[b] - s[2][a] > .0001
then
(
format " point #% (%) falls outside sphere\n" b p[b]
for o = 1 to objects.count where classOf objects[o] == geoSphere do
(
if objects[o].pos == s[1][a] do
(
format " (deleting sphere #%)\n" a
delete objects[o]
)
) -- end o loop
) -- end if/then/else (distance)
) -- end b loop
) -- end a loop
-- delete all but the smallest bounding sphere
getSphereData()
for o = 1 to objects.count where classOf objects[o] == geoSphere do
(
if objects[o].radius != aMin s[2] do delete objects[o]
)
getSphereData()
-- remove redundant points from the array
for a = 1 to s[1].count do
(
for b = 1 to p.count do
(
try
(
if distance s[1][a] p[b] < s[2][a] do deleteItem p b
)
catch (format "item was not deleted\n")
) -- end b loop
) -- end a loop
) -- end fn knuckleBall_Cont
rollout RO_knuckleBall "Knuckle Ball"
(
pickbutton pck_Tgt "Pick target" width:100
button btn_Cont "Continue" width:100 enabled:false
global theTarget
global tempPoint
local theLoop = 1
local p
on pck_Tgt picked obj do
(
theTarget = obj
knuckleBall_Start theTarget
btn_Cont.enabled = true
)
on btn_Cont pressed do
(
if tempPoint != undefined and isValidNode tempPoint do
(
tempPoint.size = 0.01
)
knuckleBall_Cont theTarget theLoop
theLoop = theLoop + 1
)
)
createDialog RO_KnuckleBall


Comments
This is one of those great
This is one of those great problems that caught my eye and I`ve been thinking about it since I read it.
I`m working on solving it at the moment. Almost there and it's pretty quick too.
Thank you for your comment.
Thank you for your comment. Yes, you are right. Of course, if the problem was easy it would've been solved long ago. But calculation time is also a factor. My version is less accurate but I think it's more practical for dynamic calculations. And... Why not share it?
my recent MAXScripts RSS (archive here)
On the left side there is

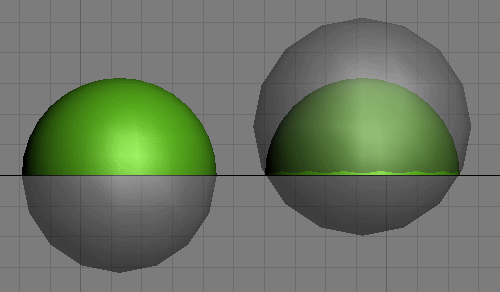

On the left side there is the bsphere of Malkalypse, on the right side the one of Anubis. You see the problem, the one on the right isn't the minimal enclosing sphere. Its a really difficult problem. Malkalypse script is heavy and needs some time to compute, but it returns nice results :)
www.andreasmeissner.net
Hi Malkalypse, I might write
Hi Malkalypse, I might write a little late. You already done by your own way in which I had no time to think, but that it's an interesting problem and now I sat down to think about.
So here my version:
my recent MAXScripts RSS (archive here)
Very nice code, thank you
Very nice code, thank you for this :)
www.andreasmeissner.net
(No subject)
Okay, I got a script that
Okay, I got a script that works pretty well, certainly good enough for my purposes:
-- special thanks to Joel Hewitt (a.k.a. Gravey) for circumcenter function
fn circumcenter p1 p2 p3 =
(
BC = distance p2 p3
CA = distance p3 p1
AB = distance p1 p2
baryCoords = [ (BC^2 * (CA^2 + AB^2 - BC^2)), (CA^2 * (AB^2 + BC^2 - CA^2)), (AB^2 * (BC^2 + CA^2 - AB^2)) ]
triArea = baryCoords.x + baryCoords.y + baryCoords.z
baryCoords /= triArea -- normalize the barycentric coordinates
baryCoords.x * p1 + baryCoords.y * p2 + baryCoords.z * p3
)
struct pointData (id, pos) -- vertex number and position
struct pointPair (pointA, pointB, dist) -- 2 points and their distance from each other
allPoints = #() -- array for all object vertices
for i = 1 to $.numVerts do allPoints[i] = pointData id:i pos:(polyOp.getVert $ i)
-- find the two points that are furthest from each other
farPoints = pointPair dist:0
for i = 1 to allPoints.count do
(
a = allPoints[i]
for j = 1 to $.numVerts do
(
b = allPoints[j]
if distance (a.pos) (b.pos) > farPoints.dist do
(
farPoints.pointA = a
farPoints.pointB = b
farPoints.dist = distance (a.pos) (b.pos)
) -- end if (distance (a.pos) (b.pos))
) -- end j loop
) -- end i loop
-- starting position and radius
sPos = ((farPoints.pointA.pos + farPoints.pointB.pos) / 2)
sRadius = ((distance farPoints.pointA.pos farPoints.pointB.pos) / 2)
theCenter = sPos
theRadius = sRadius
-- find vertices that fall outside the initial hypothetical sphere
outPoints = #()
fn getOutPoints =
(
for i = 1 to allPoints.count do
(
if distance allPoints[i].pos theCenter > theRadius do append outPoints allPoints[i]
)
)
getOutPoints()
-- For every set of 3 points,
-- if the distance between each of the 3 points is larger than the radial hypotenuse of theRadius,
-- find the circumcenter and radius for the 3 points.
-- If the radius of the 3 points is larger than the existing value of theRadius,
-- update the value of theRadius and theCenter
for i = 1 to outPoints.count do
(
a = outPoints[i].pos
for j = 1 to allPoints.count do
(
b = allPoints[j].pos
if distance b a > (theRadius * sqrt 2) do
(
for k = 1 to allPoints.count do
(
c = allPoints[k].pos
if distance c a > (theRadius * sqrt 2) and distance c b > (theRadius * sqrt 2) do
(
circ = circumcenter a b c
r = distance circ a
if r > theRadius do
(
theRadius = r
theCenter = circ
) -- end if (r > theRadius)
) -- end if (distance c)
) -- end k loop
) -- end if (distance b)
) --end j loop
) -- end i loop
Hey nice tip :) thank you
Hey nice tip :) thank you very much
www.andreasmeissner.net
Internettechnology and
Internettechnology and creating websites .. but thats only my studies, not my future. Algorithms and complex problems can be a lot of fun and maxscript is very handy :D
www.andreasmeissner.net
If you're ever looking to
If you're ever looking to make some extra cash on the side, there is a shortage of MaxScript programmers at rentacoder.com. Out of a total of 250,000 coders, only 14 have MaxScript listed in their information pages, and I've only been able to contact 3 of them.
(I should mention I don't work for the site and I'm not trying to advertise for them or anything. There don't seem to be any specific forum guidelines against such things, but I generally find advertising in forums to be poor taste.)
Mhh.. this bounding sphere
Mhh.. this bounding sphere thing is a cool problem, nice thing to talk about. Currently I'm preparing for some exams, otherwise I would start some scripttests too :( So lets think about this:
You check if 1 vert is outside of the sphere by taking the spherecenter and the vertposition and compare the distance of these 2 points to the sphereradius.
Ok, your result is the vert is sticking outside of the sphere, so now you have to correct the position of your sphere to try to bring the vert inside of the sphere again.
You can move up, down, left, right, back, forth. Try each of these directions. While moving your sphere you have to check that caused by your moving no other vert will stick outside.
The whole movement and sphereshrinking should be done in those stepvalues: 10.0 , 1.0 , 0.1 , 0.01 to approximate the closest sphere and not wasting time with to low stepvalues.
www.andreasmeissner.net
What's your major? Is it a
What's your major? Is it a related field, or is this just something you do for fun? :)
So you want to have the
So you want to have the minimum enclosing sphere.
Maybe creating a sphere like I did before, with the help of the bounding box. Then shrinking the sphere step by step and check if its intersecting with the object and adjusting the position of the sphere. Would be an attempt to find a solution from outside of the object .. an approximation, what do you think about this?
www.andreasmeissner.net
I'd considered that
I'd considered that actually, and it would certainly be a good enough solution for my needs. The only problem is, while shrinking the sphere step by step would be easy enough, I'm not sure what to do about adjusting the position.
Maybe using only 2 spheres
Maybe using only 2 spheres properties - center and radius, will give you more simple way to achieve bounding sphere calculations.
my recent MAXScripts RSS (archive here)
Those are the only
Those are the only properties I am using :O
I don't know if this is what
I don't know if this is what you're looking for :)
www.andreasmeissner.net
Unfortunately, no. When I
Unfortunately, no. When I initially started I hoped there might be a solution that simple, but there is not. Trying to use and object's bounding box works fine as long as the object is, well, a box. Otherwise, well, you can see below:
This is apparently a problem that has been attacked in a lot of different ways, particularly in the game industry, but so far there don't seem to be any MaxScript solutions for it.
For more information, check here: http://www.gamedev.net/reference/articles/article2484.asp
