create a box on every face normal center from selected object

Submitted by Ulrich Thümmler on Tue, 2025-01-28 06:06

Hi,

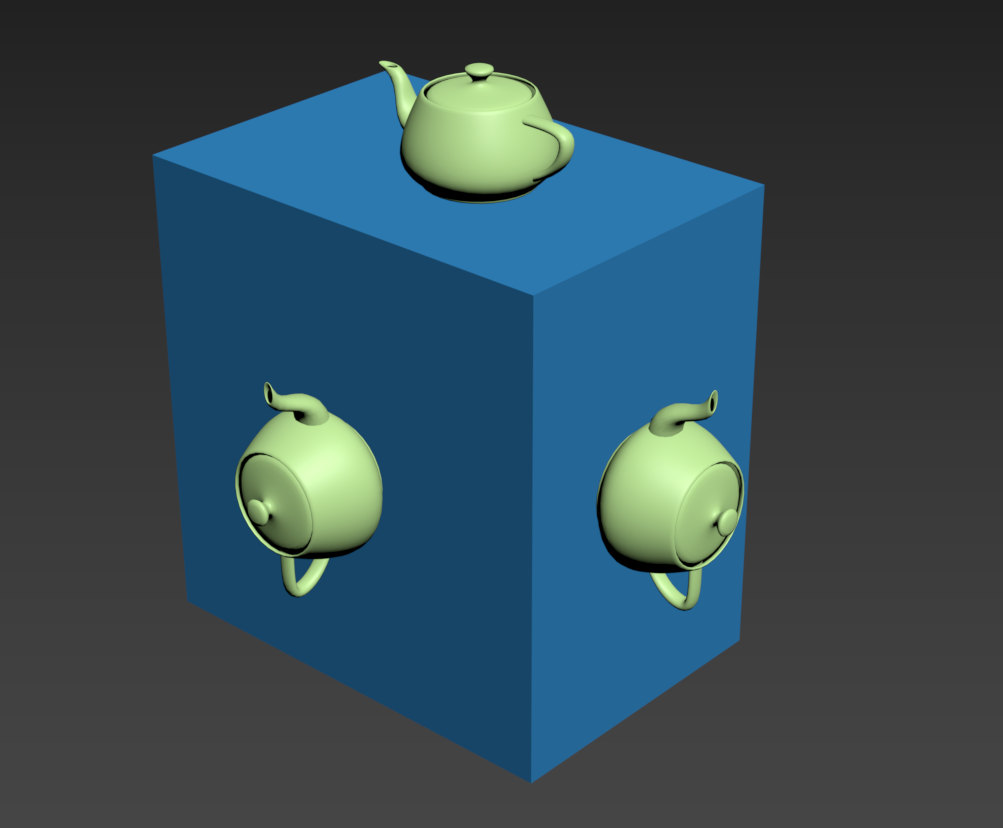

i need a script that create a box, teapot whatever on every face center with normal align from selected object.

regrads,
Ulrich

AttachmentSize
facealign.png123.66 KB
‹ Mirror object/group on X or Y axis select all objects with vraylight materials (incl. if its part of multi/sub mats) ›

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
miauu's picture
Submitted by miauu on Tue, 2025-02-18 05:39.

.

This can be achieved in different ways. This is one of them:

(
	objToCreate = Teapot()

	delSurfaceObj = false
	surfaceObj = selection[1]
	if classOf surfaceObj != Editable_Poly do
	(
		surfaceObj = convertToPoly (copy surfaceObj)
		delSurfaceObj = true
	)
	facesCnt = polyop.getNumFaces surfaceObj
	for f = 1 to facesCnt do
	(
		obj = instance objToCreate
		obj.pos = polyop.getSafeFaceCenter surfaceObj f
		obj.dir = polyop.getFaceNormal surfaceObj f
	)
	delete objToCreate
	if delSurfaceObj == true do delete surfaceObj
)
