Unwrap Pro

9 votes

Unwrap Pro is a 3ds Max plugin which unwraps meshes while producing low distortion, overlap free, weighted density UVs unlike the 3ds Max Peel command which produces overlapping uvs with high area distortion. Get it from https://mariussilaghi.com/products/unwrap-pro

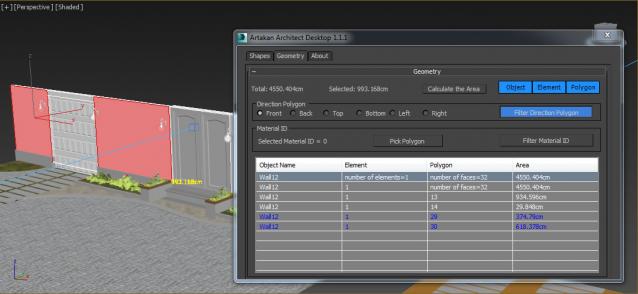

Artakan Architect Desktop

3 votes

Artakan Architect Desktop is a useful tool for architects to meet their needs and is an efficient tool.

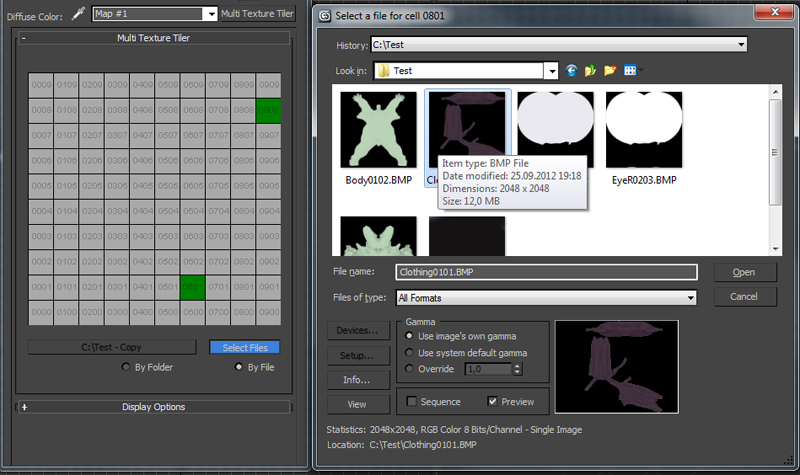

Multi Texture Tiler

4 votes

New version update: Possibility to use files without any prefix choosing them manually (thanks to Branko Živković for pushing me in that direction).



The Multi Texture Tiler (MTT) is a plugin for 3DS Max 2008 - 2013 to apply multiple textures to multiple UV-Tiles immediately.

LiveMeasure

8 votes

Measure and show edges length, segments length and faces area in real time. Work with Splines, Editable_Poly and  Editable_mesh objects and Edit_Poly modifier.
--        In Polygon/Element sub-object level will show the selected faces area in generic units only.
--        In Edge/Border sub-object level will show the length of selected edges in user defined units.

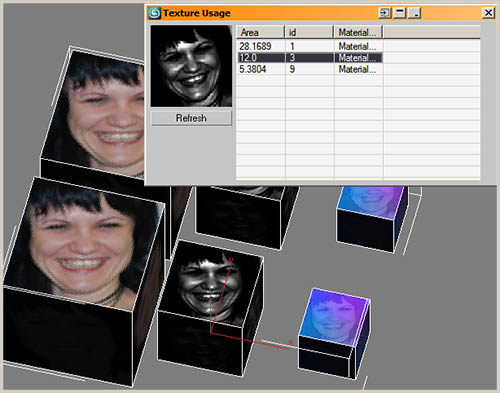

Texture Usage

9 votes

Shows the area used by each texture from selected MultiSubMaterial.
Might be useful for level-designers at optimization stage.

- select your MultiSubMaterial in MaterialEditor
- select one or several objects(EPoly) using that material
- drag script to viewport
