align object min to max of source object

Submitted by Dragan_ilic on Wed, 2019-01-30 07:30

Hello Scriptspot community,

I would like to have a script to align an object, by just picking an source object and it would align my selection min, to max positon of the source Object.
just for one Button, to fasten the Workflow.

Regards.

Attachment	Size

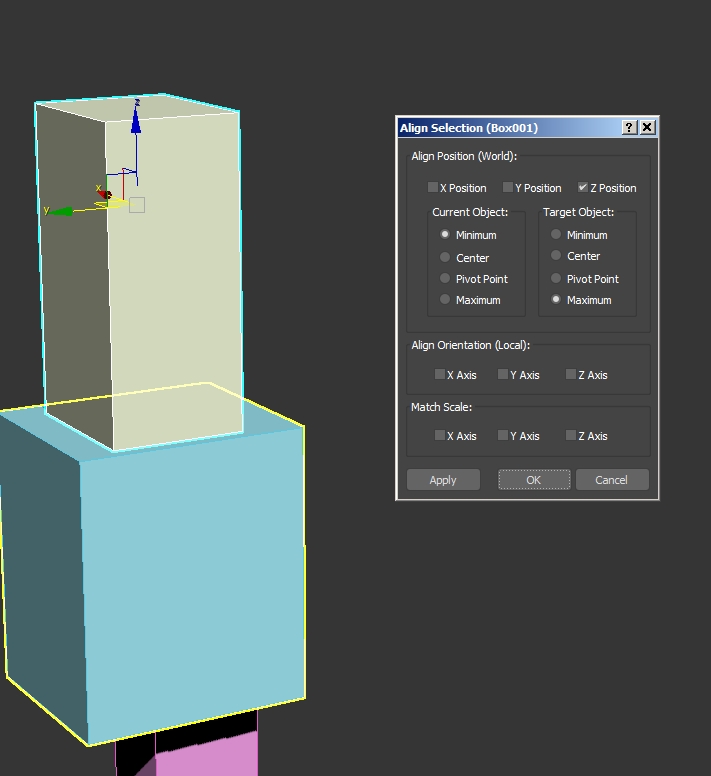

align_min_max.jpg	91.5 KB

Scripts Wanted

Comments

Submitted by titane357 on Thu, 2019-02-14 07:53.

Hi MiauuI modify your code

Hi Miauu
I modify your code to make use more faster (no ui)
Is there a way to make a rubberband from each selected object ? Now just first one have a rubberband...

obj1 = selection
obj = pickObject rubberBand:obj1[1].pos
			if obj != undefined and selection.count != 0 do
			(
				for o in selection do
				(
					o.pos.z = obj.max.z + (o.pos.z - o.min.z)
				)
			)

Submitted by miauu on Thu, 2019-02-14 12:59.

.

Hi!

Rubberband accept only one point3 value. Instead of it you can use custon rubberband:

(
	global DrawCustomRubberband
	unRegisterRedrawViewsCallback DrawCustomRubberband

	local selObjsArr = selection as array
	local selObjsPosArr = for o in selObjsArr collect o.pos

	function DrawCustomRubberband =
	(
		if selObjsArr.count != 0 do
		(
			local pointsArr = for p in selObjsPosArr collect (gw.transPoint p)
			local p3ViewCameraWorldPos = (inverse(getViewTM())).row4
			local p3ViewCameraWorldDir = -(inverse(getViewTM())).row3
			local fViewAngle = acos(dot (normalize(selObjsPosArr[1] - p3ViewCameraWorldPos)) p3ViewCameraWorldDir)
			local fViewDepth = (distance selObjsPosArr[1] p3ViewCameraWorldPos) * (cos fViewAngle)
			local p2MouseScreenPos = mouse.pos
			local p3MouseViewPos = mapScreenToView p2MouseScreenPos (-fViewDepth)
			local p3MouseWorldPos = p3MouseViewPos * inverse(getViewTM())
			gw.setTransform(Matrix3 1)
			local firstPointEnd = (gw.TransPoint p3MouseWorldPos)
			try(firstPointEnd.z = 0)catch()
			gw.setcolor #line (color 56 156 256)
			for k = 1 to pointsArr.count do gw.wPolyline #(firstPointEnd, pointsArr[k]) off
			gw.enlargeUpdateRect #whole
			gw.updateScreen()
		)
	)
	registerRedrawViewsCallback DrawCustomRubberband

	obj = pickObject()
	if obj != undefined and selection.count != 0 then
	(
		for o in selection do
		(
			o.pos.z = obj.max.z + (o.pos.z - o.min.z)
		)
		unRegisterRedrawViewsCallback DrawCustomRubberband
	)
	else
	(
		unRegisterRedrawViewsCallback DrawCustomRubberband
	)
)

Tools and Scripts for Autodesk 3dsMax

Submitted by titane357 on Fri, 2019-02-15 02:31.

Hi, thanks !!! and we can

Hi, thanks !!! and we can change color of lines !! :-)
but in 2019, I need to remove first "unRegisterRedrawViewsCallback DrawCustomRubberband"
or an error pop up...

Submitted by miauu on Fri, 2019-02-15 14:14.

.

In max 2019 is... funny. :)
Just put the first "unRegisterRedrawViewsCallback DrawCustomRubberband" in try()catch() statement. It is not the best option but it works. Or you will face what jahman wrote.

Tools and Scripts for Autodesk 3dsMax

Submitted by jahman on Fri, 2019-02-15 02:59.

(
	global rol_alignTo
	try(destroyDialog rol_alignTo)catch()
	rollout rol_alignTo "miauu"
	(
		pickbutton pbtn_getObj "Pick source object" width:140

		on pbtn_getObj picked obj do
		(
			if obj != undefined and selection.count != 0 do
			(
				for o in selection do
				(
					o.pos.z = obj.max.z + (o.pos.z - o.min.z)
				)
			)
		)
	)
	createdialog rol_alignTo
)

Tools and Scripts for Autodesk 3dsMax
