SOX Dynamics

3 votes
Version:
0.64
Date Updated:
10/31/2011
Author Name:
SangWon Lee

Sorry, The management of the tool will stop temporarily.



Additional Info:

Video tutorial will be updated soon...

v0.64

 - 'HD. Suspension' feature added



v0.63

 - Box Shaped 'Live Crawler' Object could be rotated now (Collision detection something like Laser beam)



v0.62

 - HD. Tracker feature expanded. Now you can select Delay type

 - Performance up (HD. Tracker and HD. Wheel)



v0.61

 - Bug fixed



v0.5 / v0.6

 - 'Live Crawler' Added : Auto-detecting ground position and normal direction

 - 'HD. Wheel' Added : Auto-calculate rotation of moving object. Wheel radius can be animated while entire animation.

 - Some possibly bug fixed



v0.42

 - 'Select Pair OBJ' button added



v0.41

 - Tool name & Button name Changed

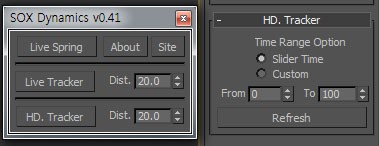

 - 'HD. Tracker' Added (HD = History Dependant)

Video Tutorial v0.41 - http://youtu.be/3haeUMb_s0Y (Korean)



v0.312

 - Bug fix : Initial Position when rendering time, now worked

 Video Tutorial v0.3 - http://www.youtube.com/watch?v=vliic6Uu6qg (Korean)

v0.311

- 'Initial Position' Feature (Tracker) Added

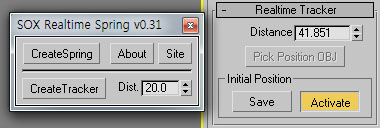

v0.3

- 'Tracker ' Added



v0.2

Video Tutorial v0.2 - http://youtu.be/cRG4I9dYooY (Korean)



< How to use >

1. Download *.ms file

2. Drag and Drop *.ms file to Max Viewport

3. Select animated objects

4. Press 'Live Spring' or 'Live Tracker' or 'HD. Tracker' button

5. Yellow box helper - Spring Object

6. Red Cross helper - Tracker Object

7. Blue box helper - HD Tracker Object



http://cafe.naver.com/pinksox/3470

http://www.gamecharactersetup.com/

affected by - http://www.scriptspot.com/3ds-max/scripts/realtime-spring

Version Requirement:
Tested under Max 2010, probably Max 6, 7, 8, 9....
Video URL:
AttachmentSize
sample_max2010.zip22.74 KB
suspensionsample01_for2011.zip196.11 KB
sox_dynamics_v0.64.ms35.45 KB
