SkinToolsEnv

5 votes
Version:
2
Date Updated:
04/29/2004

This is a new version of the skintoolsenv that is has been available for some years now - it can save large amounts of time when setting up skinned characters.

New features include a reworked UI allowing finer control over start/middle/end envelope crosssections with modify value by absolute/relative/percent - the ability to rotate indvidual bones (very useful for when they initialise in the wrong orientation) - an assign skin feature which allows you to set the initialisation parameters - dockability - compact floaters for all and selected bone controls - choice of axis for the move crosssection end mode - and a replace bone feature which allows you to replace an existing bone in your rig with an object not currently in the rig while maintaining the enveloping and weighting.

Additional Info:

After running the script in the downloadable zip file you can find it in the 'RPManager' category of your customise UI controls. Note that you need to have a skin modifier active in the modify panel - and if this tool was already open have used the 'rebuild Selection Sets/Bones' button to initialise the script properly.

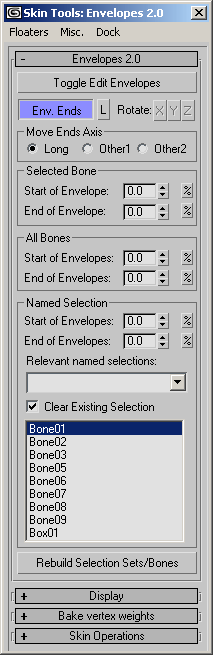

Interface snapshot 1

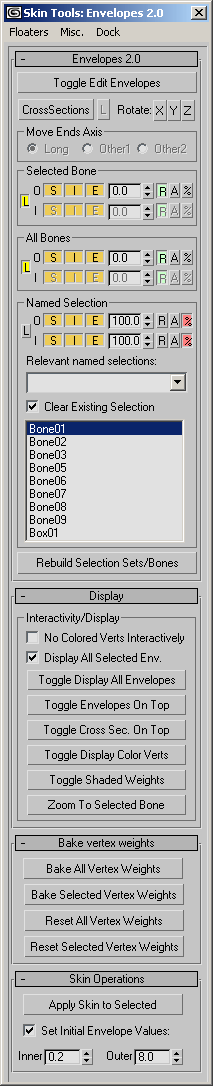

Interface snapshot 2

Version Requirement:
6; 5; 4
Video URL:
