Autocad text to 3dsmax text via data extraction

2 votes
Version:
1.0
AttachmentSize
autocad_text_to_3dsmax.ms786 bytes

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
wezzard's picture

Nice Script!

Thank you, it is very useful!
I Had to search a bit how to extract data from autocad, but everything worked flawlessly.
If I may add some information for someone else:

-Autocad = Isolate every text you want to export, type Dataextraction, create new .dxe, select objects, in the category filter choose Geometry(Pos x,y,z) and Text(Rot, Value), then arrange columns in full preview as hanselmoniz's txt file.

-3dsMAx = Drag'nDrop script in 3ds max, choose your txt file, Select texts and localScale to desired sizes.

rakib_udoy's picture

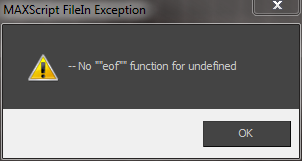

error message :(

error message :(

AttachmentSize
capture.png 14.72 KB
hanselmoniz's picture

please check the text file

the text file created from autocad should follow the format
as per the txt file i have attached.
if it still doesnt work you could you attach the autocad data extraction text file.

AttachmentSize
sample_text.txt 294 bytes
obaida's picture

Error

Thank you for this script .
i get error message :
>> MAXScript FileIn Exception: -- Unable to convert: undefined to type: Float <<

I used (autocad 2007 , max 2009) .
