Multi-Tile UV Bake Tool

By RicardoTeixeira · 2014-12-11

Community compatibilityNo compatibility reports yet

No reports yet for the available releases.

Community reviewsNo reviews yet.
Version
0.14
3ds Max compatibility
See listing claims below
How compatibility works

Choose the 3ds Max version you use. For example, selecting 2020 puts direct matches for 2020 first, followed by listings that say a supported version or newer.

Scripts that only mention an older version can still appear as “2020 unconfirmed.” Listings that rule out 2020 are excluded. Use “Show scripts with unconfirmed compatibility” to also see listings without a clear match.

Community reports show what worked for members on a specific release. They’re separate from the listing’s compatibility claims and don’t change the filter.

From original requirements
2009 or newer
Original version requirement
3dsMax 2009 or higher
Date updated
2014-12-11
Legacy votes
1

Downloads

Other files

Description

The Multi-Tile UV Bake Tool allows you to bake multi-tile texture collections in 3ds Max using common naming conventions such as MARI UDIM, Mudbox or Zbrush. By default, baking textures in 3dsMax is limited to the 0,1 UV Space. Without this tool, manually exporting/baking collections is extremely time consuming and quite forbidding, especially when dealing with large tile collections. The bake tool was developed in order to process and export multi-tile uv data sets in 3ds Max for direct use with Amplify Texture 2 in Unity Pro, as an added bonus it’s a great pipeline addition if you need to take your 3ds Max projects into other Multi-Tile Based authoring tools such as MARI.

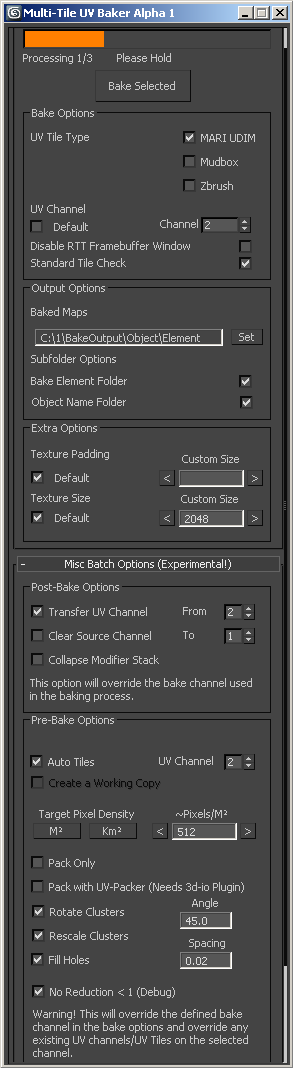

  • The Multi-Tile UV Bake Tool automates and enhances the time consuming process of manually baking multiple tile collections in 3dsMax. The tool outputs tile collections in MARI UDIM, Zbrush, Mudbox and compatible naming conventions. It works with any type of render engine capable of using the Render To Texture extension such as Vray, Mental Ray, Brazil, finalRender or similar packages.
  • It works by taking the required bake element information directly from the Render to Texture Dialogue. Any Render Element available in the dialog can be baked with this tool, including Displacement, Normal or even Occlusion maps. The tool uses any options previously set up in the dialog, including projection settings or specific element parameters.
  • The bake tool provides several batch options that will simplify and enhance your workflow. Baking hundreds or even thousands of tiles becomes a trivial task with automatic tile detection and several batch override options such as padding, tile size, texture density and UV Flatten options.

This tool is still in development, any feedback would be welcome and extremely helpful. Thanks!

Trial: Download

Additional Info

I'm preparing a couple of extensive video tutorials covering various subjects, from Video Game related bakes to Architectural and Product Previz. In the meantime, anyone familiar with texture baking should be able to pick it up using the Manual as reference.

Bake Tool Manual

Product Page

The Bake Tool is free for all Amplify Texture 2 licensees. Amplify is our texture virtualization, aka MegaTexture, solutions for Unity3d.

Amplify Texture 2

Videos
Comments (1)

Comment policy

RicardoTeixeira

We added a Trial version and an In-Depth Video Tutorial to our product page.

Trial: Download

Video: Tutorial Page
