Align Slice Modifier Gizmo(Plane) to 3 points

By miauu · 2015-06-26

Community compatibilityNo compatibility reports yet

No reports yet for the available releases.

Community reviewsNo reviews yet.
Version
1.2
3ds Max compatibility
Unknown
How compatibility works

Choose the 3ds Max version you use. For example, selecting 2020 puts direct matches for 2020 first, followed by listings that say a supported version or newer.

Scripts that only mention an older version can still appear as “2020 unconfirmed.” Listings that rule out 2020 are excluded. Use “Show scripts with unconfirmed compatibility” to also see listings without a clear match.

Community reports show what worked for members on a specific release. They’re separate from the listing’s compatibility claims and don’t change the filter.

Original version requirement
https://www.youtube.com/watch?v=2EHOgxITfXo
Date updated
2020-02-23
Legacy votes
8

Downloads

Release history (1)
  • Version 1.2Listed version

    Listing updated

    No download linked to this version

Tags: align, slice, plane, gizmo, Modifiers, points

Description

The script allows you to pick 3 points in the scene. The slice gizmo of the slice modifier of the selected object will be aligned to the picked points. When you run the script the SNAP will be automatically turned ON.

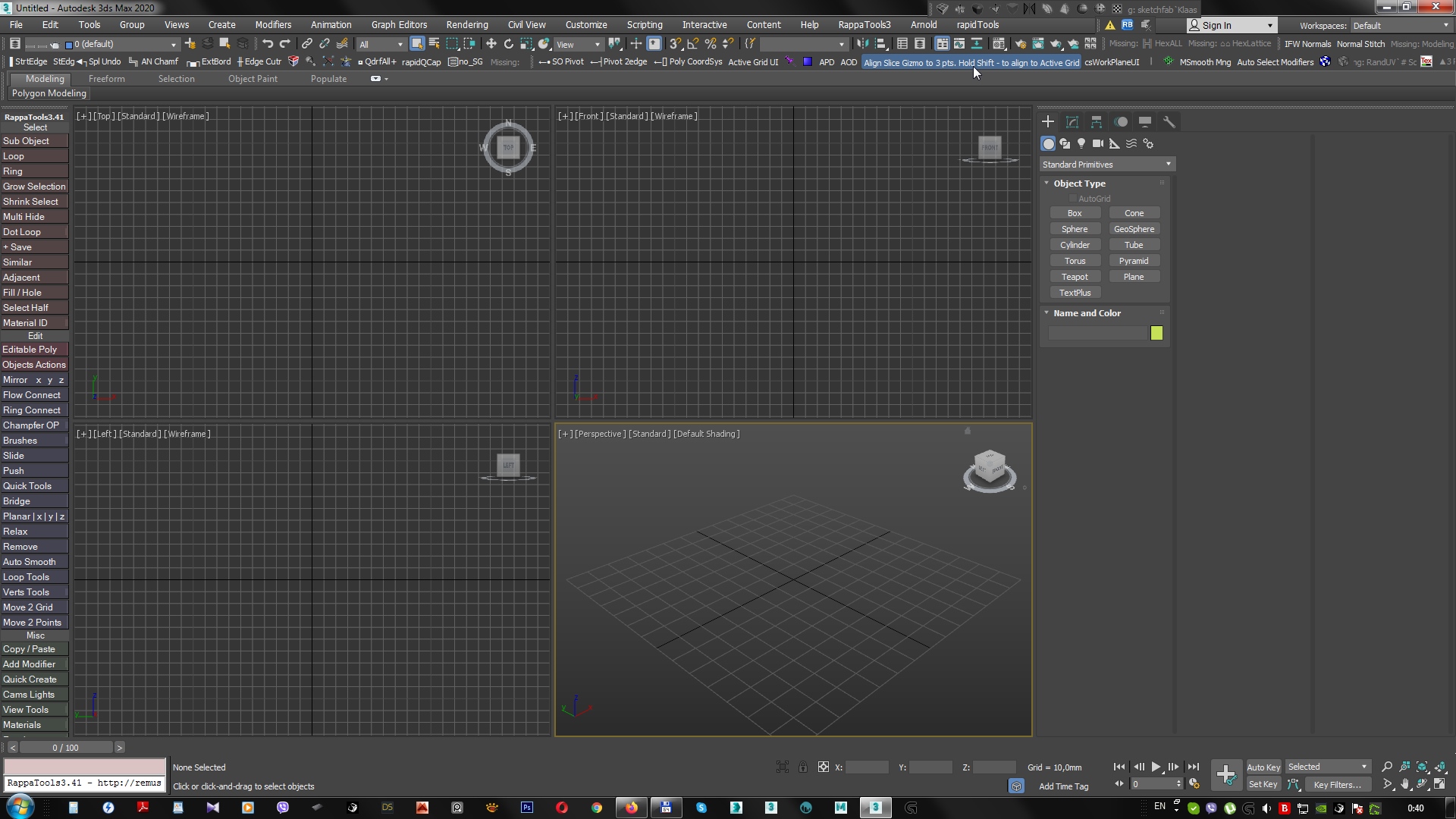

If the Shift key is pressed when you run the script the Slice plane will be aligned to the currently active grid. Works best if the script is ran from a toolbar button.

Version 1_1 - align only to 3 points

Version 1_2 - align to 3 points or to active grid

Requested here: http://www.scriptspot.com/forums/3ds-max/scripts-wanted/align-slice-modi…
