Oriented Line

7 votes
Version:
0.03
Author Name:
Vojtech Cada

Line segment aligned to follow the drag direction:



Additional Info:

Installation: Copy the .ms file to your scripts\startup folder or run as a script if you want to try it out first. The object primitive will be available under Shapes -> Splines dropdown menu in the Create panel.

AttachmentSize
orientedLine.ms738 bytes

Comments

Comment viewing options

Select your preferred way to display the comments and click "Save settings" to activate your changes.
Morce1952's picture

All the surveys and

All the surveys and statistics is supporting the fact that quality assurance is mandatory in all aspects. Get the cv writing services uk to write your professional resume for their students. Quality must be prioritized over the quantity. This document is worth to read.

Swordslayer's picture



Good idea, I modified it accordingly.

makco's picture

Amazing !! but one request

Hi there, this is a great script along with all the others you have shared!
One question though:
Is there a way to include a line of code so after the line is created it gets collapsed to an editable spline? this would be helpful so if a computer access a file that used the script can still see the lines... and if you are sending to a render farm you will not have to manually remember to explode convert the lines to editable splines...

obaida's picture

i tried it in max 2014 not

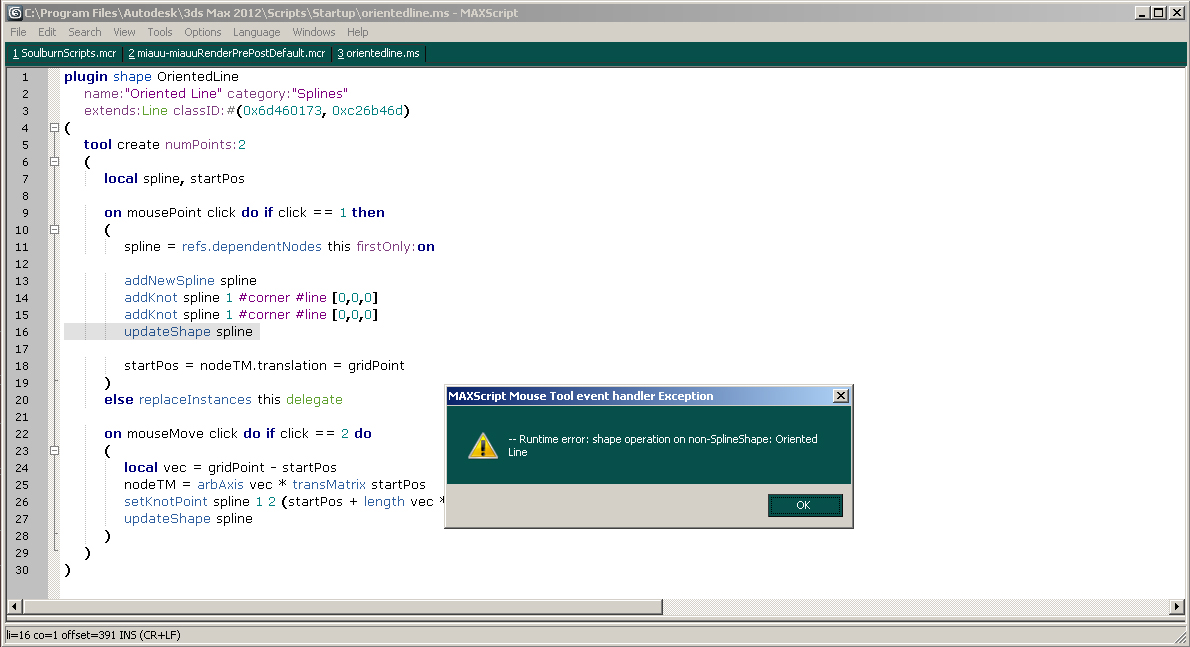

i tried it in max 2014 not working properly!! I cant see the line without selecting sublevel.

Nik's picture

Великолепно

!

igamaximus's picture

Perfection in simplicity

Mate, your ideas are so amazing. Thank you for each one of your magnificent tools !
