Gamma Organizer

By pixamoon · Credited author: Pixamoon · 2015-03-29

Version
v1.36.00
Version requirement
3ds max 2014 and up.
Date updated
2022-03-23
Votes
32
Homepage
www.pixamoon.com
Download
Download
Description

New  v1.36.00 Pro
- added support for new Color space type "Auto" in VRayBitmap (VRay 5.2)
- added support for RGB Primaries in VRayBitmap and VRayColor (VRay 5)
- added support for other maps with gamma settings  ColorMap, VRayColor etc.
.

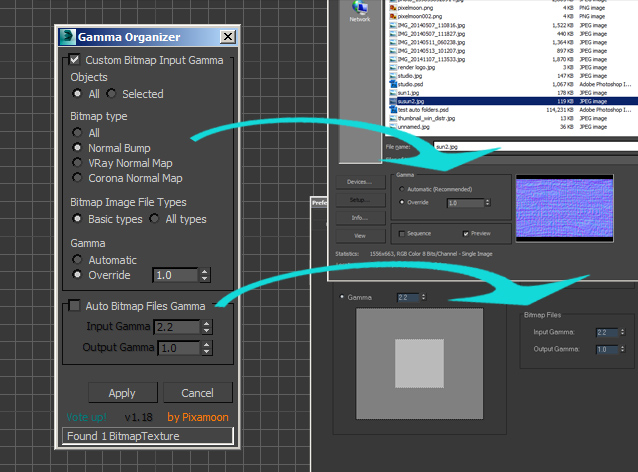

This is script to change bitmap load gamma in whole scene or selected Bitmaps.
It can change gamma in all / selected bitmaps (now filtered by selected objects).

It helps to switch gamma in Normal Bump to prevent VRay render crash
( when merged models came with automatic gamma in Normal Map)

Normal Bump for VRay Render should be Override 1.0
VRay Normal Map - recomended - Override 1.0
Corona Normal Bump - recomended - Automatic
https://coronarenderer.freshdesk.com/support/solutions/articles/5000501663-how-to-use-normal-maps-

Apply by
Object selection - All, Selected only
Bitmap type - All,  Normal Bump, VRay Normal Bump or Corona Normal Bump only

Change All / Selected Custom input gamma works in max 2014 and up.

It is recomended to change gamma only for Basic Bitmap Image types:  ".bmp",".gif",".ifl",".jpg",".jpe",".jpeg",".png",".tga",".vda",".icb",".vst",".tif",".tiff"
New version has option to change gamma in other file types but without custom settings (exposure, layers etc in .psd .exr)
Please use it carefully !

Full version:
Full version with Maps Listener + real time update for Show selectied  (objects or materials).
http://www.pixamoon.com/product-page/gamma-organizer

It shows Maps with Slots and Classes where they are located

New:
v1.36.00 Pro
- added support for VRayBitmap's Color space transfer function in VRay 5.2.0 (additional type 'Auto')
- fixed: set ListView colors on first start (base on 3ds max theme)

v1.35.00 Pro
- fixed changing Inverse gamma value in VRayBitmap / VRayHDRI

 v1.34.00 Pro
- added support for RGB Primaries in:
   - VRay Bitmap
   - VRay Color
- added support for other maps with gamma settings:
   - Color Map
   - VRay Color
   - Corona Color Correct
   - Arnold Color Correct
- UI changes:
  - auto hide / unhide setting groups (in right panel) - depends if map exists in scene / material editor
  - auto increase window height - if needed for setting groups

 v1.33.00 Pro
 - added support for:
    - VRay Bitmap (VRay 5)
    - RedShift RS_Bitmap
    - Octane RGB_Image
    - Arnold Image
 - added Settings to customize listview font and colors (dark and light theme
 - set VRayHDRI/VRayBitmap and Arnold Image Color Space moved to main UI
 - UI changes:
   - new custom controls (EditText, Spinner, ComboBox)
   - added arrow to show sorted column and sort order
   - changed columns style for darker theme
   - settings: added row height option (in addition to font height)

 v1.32 Pro
  - Filter by selected Objects or Materials (from material editors)
  - Change VRayHDRI Gamma
  - Save settings: location, size, filters

 v1.30 Pro
  - Bitmaps Listener
  - instance info
  - location info (Class, Slot, Name, Class above, Slot above, Name Above)
  - automatic filtering from selected objects
  - automatic filering by Bump Type
  - change gamma in selected only
  - sort list by column
  - comes with installation package and toolbar icon

Free version:
Install favorite scripts (just drag and drop to max window)
Add icon on toolbar or create shortcut
Create favorite scripts folder structure and copy Gamma Organizer there
More info about Favorite Scripts :
http://www.scriptspot.com/3ds-max/scripts/favorite-scripts

Free Lite vesion download available here:
Gamma Organizer Lite (turbosquid.com)


Full Pro version available on my web:
Gamma Organizer Pro (pixamoon.com)


Let me know what you think. or if you have more suggestions ? Which slots should be on the list to override gamma ?
Pixamoon

Tags: gamma vray corona normal bump map load input output organize organizer batch tool bitmap texture vrayhdri hdri bitmaptex bitmaptexture

Comments (20)

Delete this

ChuckRT · 2024-02-24

sorry it post again

Corona Normal Map (lite version)

ChuckRT · 2024-02-24

Hi there, I love this script, in recent versions I think that Corona changed the structure name for many maps, the script cant recognize any Normal map, hope there is a posibbility to change this.

Re: Corona Normal Map

pixamoon · 2024-02-28

Yes, will add support for new Corona version

Best,

Re: Corona Normal Map

pixamoon · 2024-03-26

Hi,

I did a quick test with the new Corona and can't find any problem with recognizing maps.

Could you send me some scene to test it. Best to pixamoon@gmail.com
Let me know which maps are not recognized by Gamma Organizer and which version of Gamma organizer do you use.

Best,

Nice script !

titane357 · 2023-02-03

Very well designed and easy to use !
Works nice and fast !

todor · 2021-11-05

nice script !

RGB primaries to VrayBitmap

d1myan · 2021-11-05

Please add "RGB primaries" to VrayBitmap/VRayHDRI and to Vray Color Map.

Re: RGB primaries to VrayBitmap

pixamoon · 2021-11-15

Yes, this is already on list to do nd will be added in next update.

Best,
Pixamoon

Strange thing happened with path of bitmap (Lite version)?

nnq2603 · 2021-06-17

Problem: I use this Gamma script for Populate people in 3ds max.

After I user Gamma Organizer (Lite) apply Override all selected bitmaps to 1, the paths were changed to local sub-folder in my PC. Before that I have all path (assets path) all set to server network shared folder.

If I run your Gamma script, get all the paths changed, I'd again set all changed path to network location. But after setpath, all bitmap input-gamma came back to Automatic. If I go a step further and apply override to 1 again, the path all change to local folder again... That's a loop, can't find work around this for render scene in backburner (wrong path make populate people display white without any texture).

So it's by design in Lite version or something wrong going on here?

Thanks Pixamoon for Lite/free version of this tool

nnq2603 · 2021-06-16

Gamma set override bitmaps works very well. Thanks a lot Pixamoon. Great works. More often than not, when I search for something, that script already wrote by Pixamoon. Quanity or scripts from your desk is high, so is the quality!

pilotchiao · 2020-05-12

Why Cannot Download the free lite version?

Incredibly useful

JCR2011 · 2020-03-14

Thanks, this is exactly what I needed!
Best wishes from Maine!

thanks for the freebeee :)

3dwannab · 2015-04-22

Any chance we can get this as a macro to assign it to a quad, toolbar etc? Many thanks.

3dwannab · 2015-04-24

Seen that earlier and never thought of using it. Thanks. How long have you been scripting? You are coming up with good scripts.

Thanks :)

pixamoon · 2015-04-25

Still just learning but have much more ideas for new scripts/tools in my head :p and some old started but not finished yet...
Hope to find more time to work on them soon.

themaxxer · 2015-04-01

nice script, but I have a question. I only have to change the input gamma of the bitmap in a normalbumpmap when working in gamma 2.2. is this possible, I only see a bumpmap option...?
and maybe it would be great if you could implement the gamma change option also for colors too.

best regards
themaxxer

normal map gamma

pixamoon · 2015-04-01

Thanks for this suggestion :)

I'll do second list for Map types.

Also, Bitmap Tracking / Resizing... will have that too + you will be able to see actual input gamma for every bitmap ans see where is is loaded.

Thanks again!

Any more suggestions ?

Artie · 2015-03-30

Can you upload it to somewhere else - turbosquid asks for signup? Thanks for the script though.

pixamoon · 2015-03-31

hi,
Thanks for comment,

I'm sorry, but for now only there is download counter. It helps me to know which scripts I should work more on.
And still it's free registration and free download.

I'll do later counter on my web. But have to find time for it.
Best,
