GrabViewport 2.1
FOR THE LATEST VERSION PLEASE GO HERE http://www.scriptspot.com/3ds-max/scripts/grabviewport-0
2.1 Changes:
- Now properly includes alpha masks from Xoliul, 3point shaders and standard material into the Alpha and all other passes
- Hides the World Axis icon from the viewport (max 2008 and higher only)
- Added directory selection and filename in the UI
- Saves settings to ini file and loads them the next time the script opens
Save High Resolution Viewport Captures
Passes:
Alpha: Saves alphas from the viewport to the alpha channel of the baseimage
Color: Assigns random colors to all objects and saves the separate pass
SSAO: Saves a separate Screen Space Ambient Occlusion Pass
Wire : Saves a separate Wire Pass
Z-Depth: Control the Zdepth range and save it as a separate pass (first increase the end untill all is visible and then tweak the begin parameter)
ColorMask, AOMask, WireMask: save a separate image or avi file to the same directory as the basefile (filename_passname.ext) AlphaMask : includes an alphamask in the viewportcapture alpha channel or saves out a separate avi file for the animation.
Tested in 3ds max 9, 2010 , 2011, 2012 (DIRECT3D)
PASSES PREVIEW
Install:
Drag Grabviewport2.mcr into your viewport or go to maxscript ->Run Script. Now go to Customize->Customize User Interface. Toolbars->Category->Grabviewport2 and drag the Grabviewport button into your UI or bind a key to it. Special thanks to : Borislav Petrov (MaxScript reference), Kostadin Kotev (miauu )for the Alpha Masking technique
Comments
hey r3ynard did you press
hey r3ynard did you press ctrl+e to evaluate the script after you adjusted it?
i'm going to make sure i fix this in the next update but it must be because you used the clean 3ds max script or something simular that disabled a few standard max functions
Still Error
Hi Anubis,
Sorry for double posts earlier, coz my Internet is bit slow here.

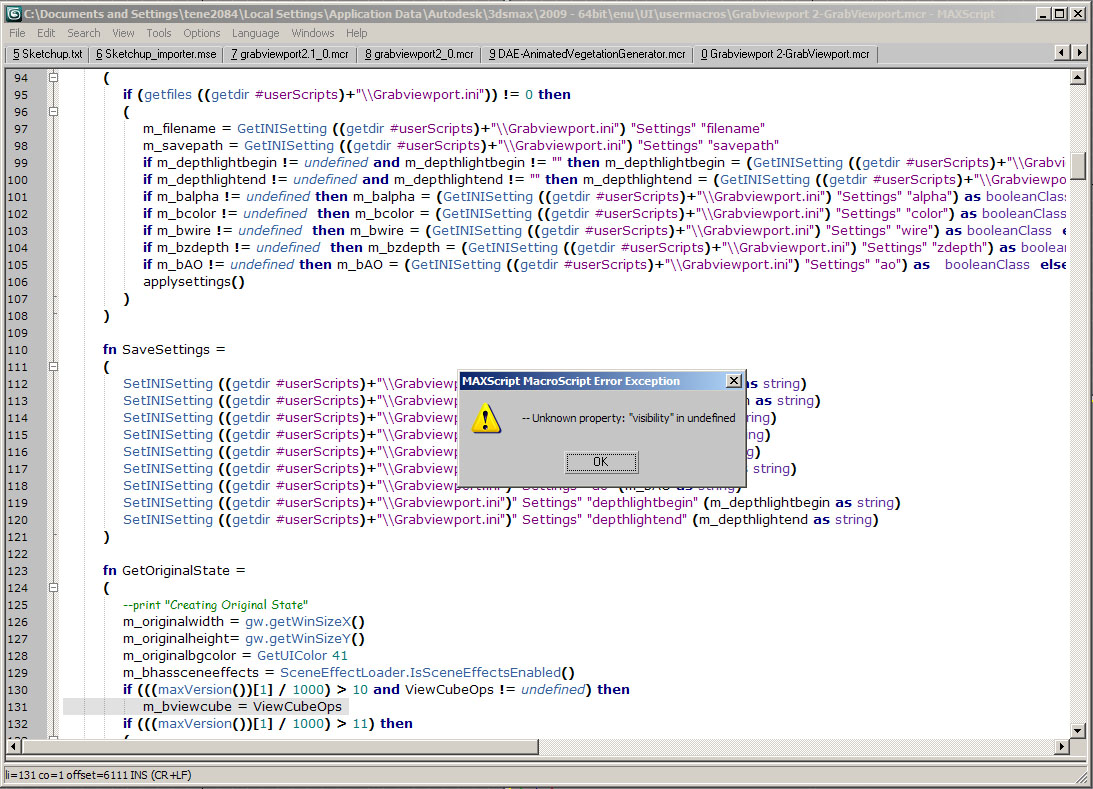

Anyhow, the script still give me error when I deleted the .Visibility from the line.
These are the specs of my
These are the specs of my system:
Intel Xeon X5355, 4GB Ram
Quadro FX 4600
Windows XP 64bit, 3dsMax 2009 64 Bit.
edit that line
Hi r3ynard,
just delete .Visibility from that line, ie it s'd look like this:
if(((maxVersion())[1] / 1000) > 10 and ViewCubeOps != undefined) then
cheers
my recent MAXScripts RSS (archive here)
Error in Script

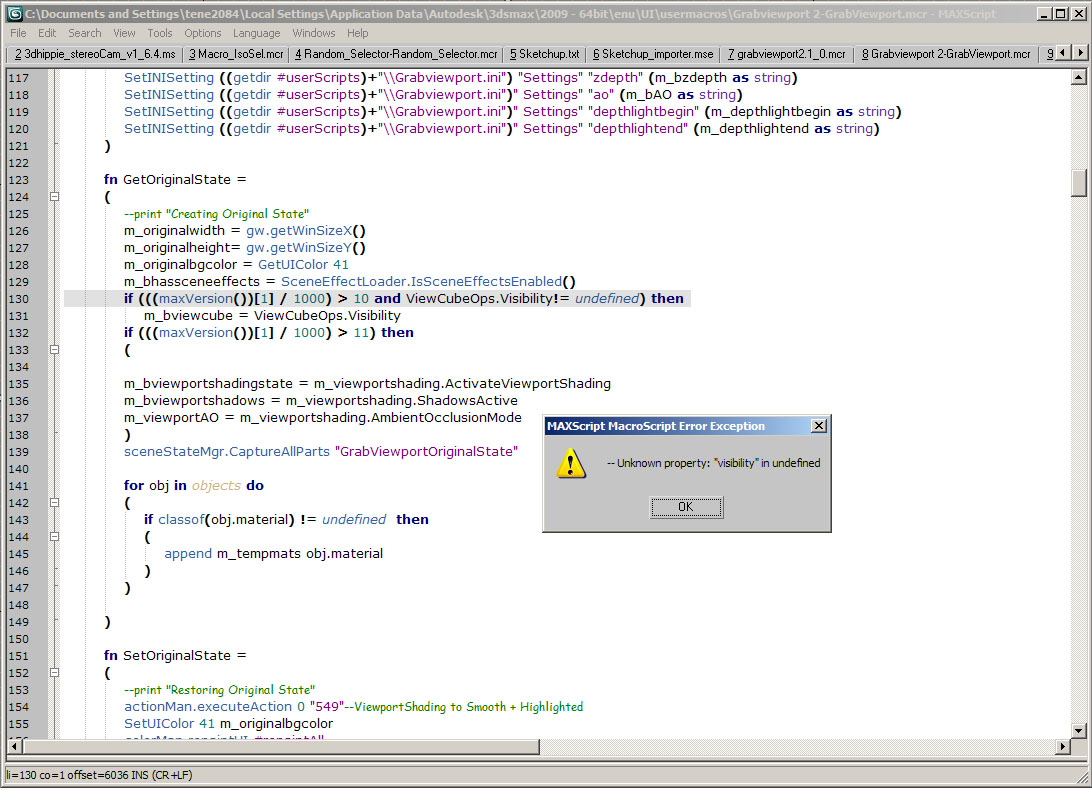

This script give me an error, "visibility" in undefined.
I'm using max2009 64bit. Anyone can help me?
Thanks.
Error in Script
This script give me an error, "visibility" in undefined.
I'm using max2009 64bit. Anyone can help me?
Thanks.
will look into it
tnx for informing me , could you give me your system specs, max version and what bitversion it is
i think this might be caused by the viewport capturing too fast while the viewport isn't updated entirely yet

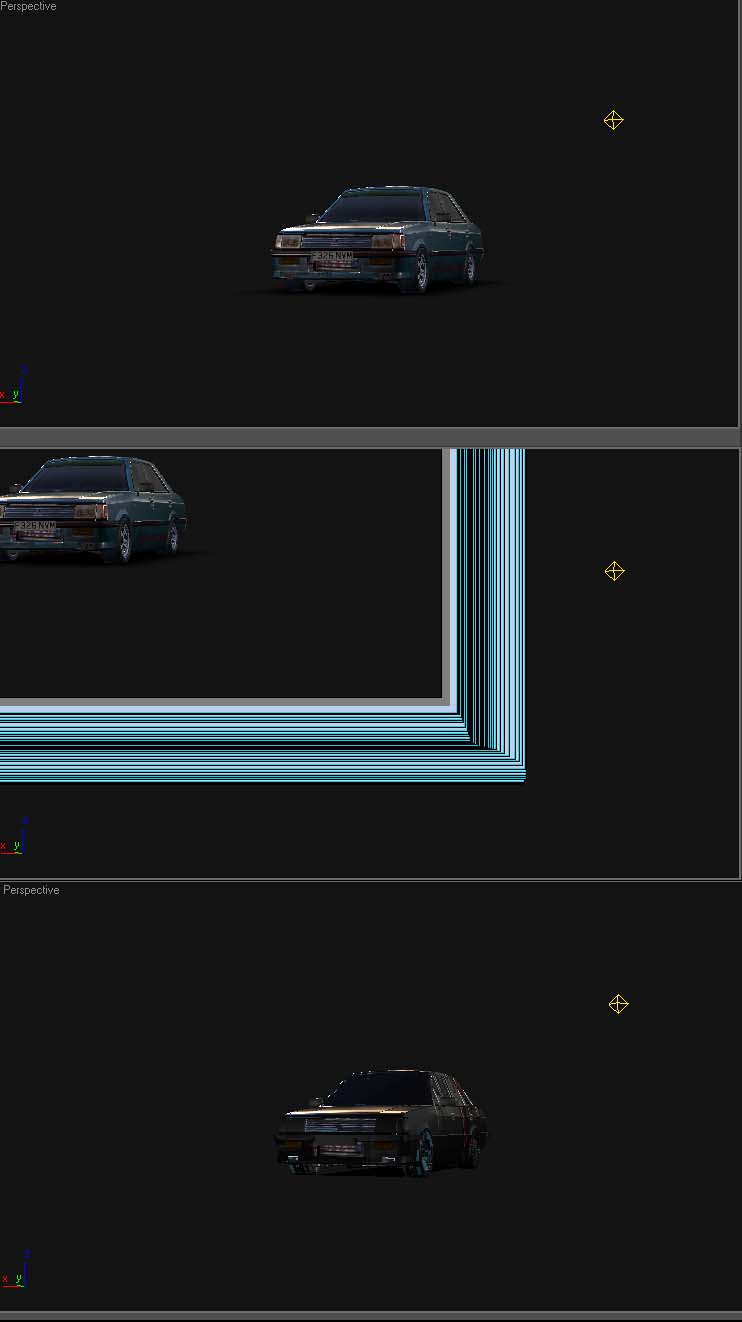

Viewport and texture mess
Still does this in my version - may be something with my system?
some thought .... maybe you
some thought .... maybe you can add callback when max close or save file, it autmatically save grabbed viewport in current directory and same name as original max file.
thanks
tnx :)
ahah yeah that's probably something i can't check for in my code :)
i'll look into those suggestions, so consider them added to the list!
tnx
and i added an extra check to the script incase the viewcubeops isn't available
