Autodesk_Map to Bitmaptexture

Downloads

  • Version 1.0Listed version

    Listing updated

    Release notes

    Version 1.0 - 2018.02.02 - Finally found what's been going on here. The script should now work correctly regardless of the material

Earlier releases (1)
  • Version 0.7

    Release notes

    Version 0.7 - 2014.11.07 - This version now loops through all slots in a Standard material, and keeps most map properties - tiling, offset, etc.

3ds Max compatibility
Unknown
Community compatibilityNo compatibility reports yet

No reports yet for the available releases.

Community reviewsNo reviews yet.

Listing details

Version
v1.0
Author’s update date
Legacy votes
3
Listing created
How compatibility works

Compatibility comes from the author’s supported range or requirements in the original listing. A tested version records what the author tried.

“2020 unconfirmed” in the catalog means support for 3ds Max 2020 is still unknown.

Community reports record successful tests on specific releases.

Posted by

Smallpoly

Michael Vladimir Nicolayeff

More by this author

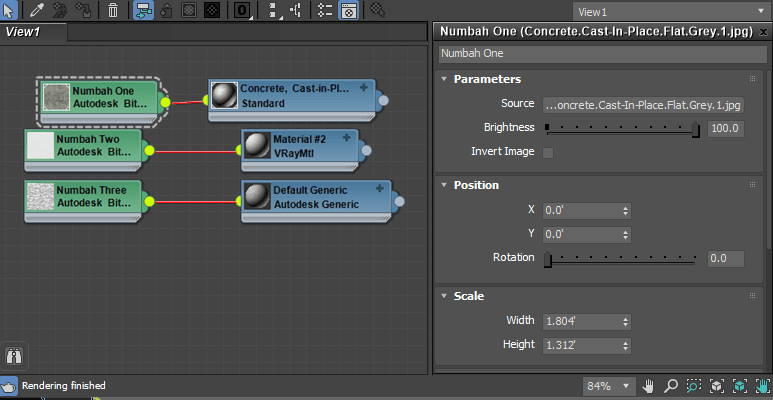

This script looks for Autodesk_Map textures in all scene materials and replaces them with standard bitmaps instead. Now that this script is finally general purpose, I'll be rolling a copy of it into the my Autodesk to Standard Material Converter script. The stand-alone version of the script will remain here as usual.

Autodesk_Map textures are generally found in Max files with data imported from Revit.

Setup & notes

Change Log:

Version 1.0 - 2018.02.02 - Finally found what's been going on here. The script should now work correctly regardless of the material

Version 0.7 - 2014.11.07 - This version now loops through all slots in a Standard material, and keeps most map properties - tiling, offset, etc.

Comments (9)
feng

How can i use it in max2019????

Reply to feng
Michael Vladimir Nicolayeff

Hi fvstudio, I'll test it out on my end and see if I can figure out what's going on.

feng

How can i use it in max2019????

It cant be used in 3dsmax2019.please help me!!!
Thank you!

Feng

Michael Vladimir Nicolayeff

Autodesk_Map and VRay Materials

Finally got around to looking at this one again.

While the script has always worked perfectly for me for converting Autodesk maps that are within Standard materials, users that attempted to use modified versions with VRayMtl would get an error.

What had been going on here was that StandardMaterial has a Maps property, which is an array of all its maps, that I had been relying on for my map replacement. VRayMtl does not have this property, so the script would always fail. Any script that fixed it would have to sample every slot by name.

Fortunately I now have a new method for this, using getClassInstances and Replaceinstances, that bypasses the need to loop through map slots. This not only fixes the script so it works with VRayMtl, but now it should also work for every kind of material regardless of type.

hanselmoniz

Still not working

Thanks for the reply but this does not work..

-- Script replaces autodesk maps with regular bitmaps. does not handle things like autodesk noise.
-- Reports missing maps

fn convertMap map matname=
(
inMap = map
outMap = bitmaptexture()
print ("converting" + map.name)

outmap.name = inmap.name

outmap.coords.U_Offset = 0
if inMap.Position_X != 0 then outmap.coords.U_Offset = inMap.Position_X
outmap.coords.V_Offset = 0
if inMap.Position_Y != 0 then outmap.coords.V_Offset = inMap.Position_Y

outmap.coords.realWorldScale = on
outmap.coords.U_Tiling = 1
if inMap.Scale_Width != 0 then outmap.coords.U_Tiling = 1/inMap.Scale_Width
outmap.coords.V_Tiling = 1
if inMap.Scale_Height != 0 then outmap.coords.V_Tiling = 1/inMap.Scale_Height

outmap.coordinates.UVW_Type= 0
outmap.coordinates.U_Mirror = false
outmap.coordinates.V_Mirror = false
outmap.coordinates.U_Tile = true
outmap.coordinates.V_Tile = true
outmap.coords.W_angle = inMap.Position_Rotation
outmap.coordinates.mapChannel = inMap.Advanced_Parameters_Map_Channel

badmap = false
try (outmap.bitmap = inmap.Parameters_Source)
catch
(
print ("Map not found in " + inMap.name as string + " in material " + matname + ". Please convert manually.")
badmap = true
)
if badmap == false then (return outMap)
else (return inMap)

)

for m in sceneMaterials do
(
if classof m == VrayMtl then
(
for b=1 to m.maps.count do
(
bmap = m.maps[b]
if isProperty bmap "Parameters_Source" and classof bmap == Autodesk_Map then (m.maps[b] = (convertmap bmap m.name))
)
)
)

hanselmoniz

adksbitmap to bitmap for vray materials

-- Script replaces autodesk maps with regular bitmaps. does not handle things like autodesk noise.
-- Reports missing maps

fn convertMap map matname=
(
inMap = map
outMap = bitmaptexture()
print ("converting" + map.name)

outmap.name = inmap.name

outmap.coords.U_Offset = 0
if inMap.Position_X != 0 then outmap.coords.U_Offset = inMap.Position_X
outmap.coords.V_Offset = 0
if inMap.Position_Y != 0 then outmap.coords.V_Offset = inMap.Position_Y

outmap.coords.realWorldScale = on
outmap.coords.U_Tiling = 1
if inMap.Scale_Width != 0 then outmap.coords.U_Tiling = 1/inMap.Scale_Width
outmap.coords.V_Tiling = 1
if inMap.Scale_Height != 0 then outmap.coords.V_Tiling = 1/inMap.Scale_Height

outmap.coordinates.UVW_Type= 0
outmap.coordinates.U_Mirror = false
outmap.coordinates.V_Mirror = false
outmap.coordinates.U_Tile = true
outmap.coordinates.V_Tile = true
outmap.coords.W_angle = inMap.Position_Rotation
outmap.coordinates.mapChannel = inMap.Advanced_Parameters_Map_Channel

badmap = false
try (outmap.bitmap = inmap.Parameters_Source)
catch
(
print ("Map not found in " + inMap.name as string + " in material " + matname + ". Please convert manually.")
badmap = true
)
if badmap == false then (return outMap)
else (return inMap)

)

for m in sceneMaterials do
(
if classof m == VrayMtl () then
(
for b=1 to m.maps.count do
(
bmap = m.maps[b]
if isProperty bmap "Parameters_Source" and classof bmap == Autodesk_Map then (m.maps[b] = (convertmap bmap m.name))
)
)
)

Reply to hanselmoniz
Michael Vladimir Nicolayeff

Found the problem. What was going on is that when using classof you shouldn't be putting the parentheses after VRayMtl. so it should look more like this:

for m in sceneMaterials do (if classof m == VRayMtl then print "this is a VRayMtl")

Reply to hanselmoniz
Michael Vladimir Nicolayeff

Thanks! Ultimately I want to set it up so it doesn't matter what class of material it is. :)
